Feiyide 全位置密閉管溶接機ステンレス鋼トラック溶接機湖北自動溶接機

Product Details

Pipe and tube welding system consists of M400 welding power source and open welding head. This welding gun is suitable for general form pipe to pipe automated welding. There are two options: self melting or wire filling. Mainly used in chemical, food, engineering installation, boilers, or ship nuclear power, etc..The M400 inverter welding power supply consists of a PLC control system, an imported 400 inverter core, and a cooling water tank. The equipment is progressiveness, digital and easy to operate.

Product introduction

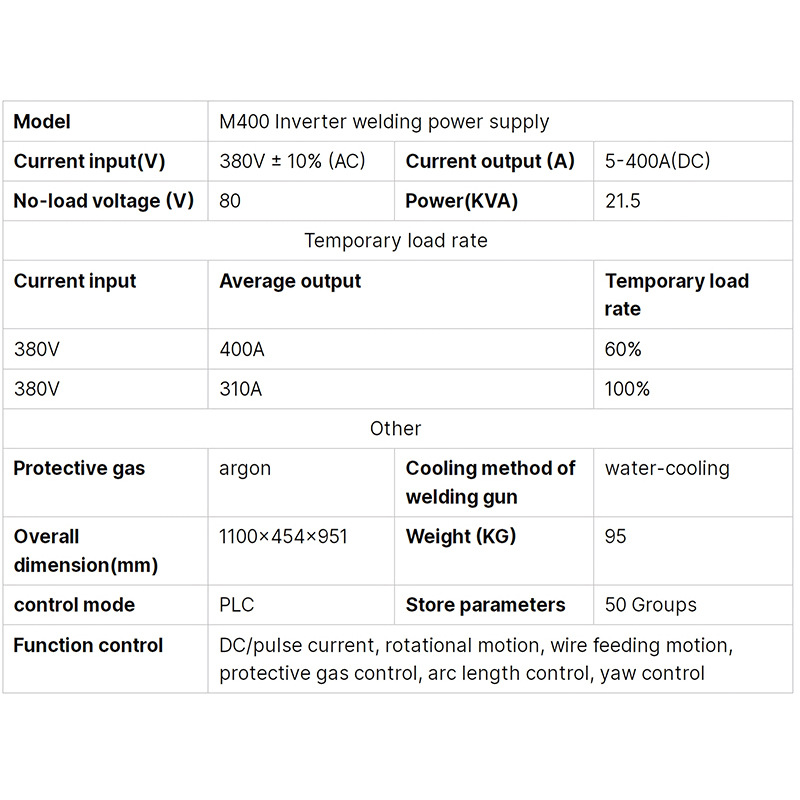

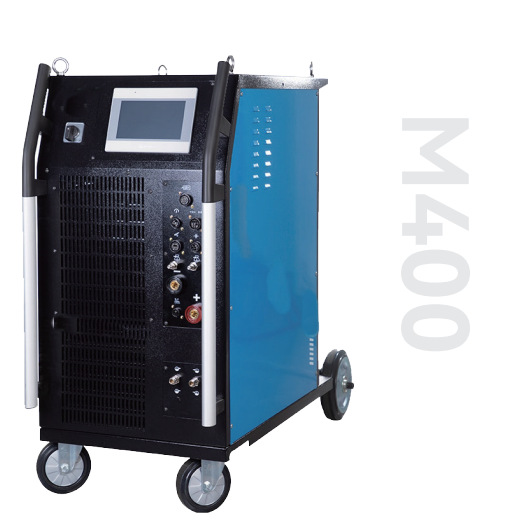

The M400 inverter welding power supply consists of a PLC control system, an imported 400 inverter core, and a cooling water tank. The equipment is progressiveness, digital, easy to operate and reliable.

The equipment adopts Siemens PLC control platform, designed specifically for industry, to monitor various output and sampling signals with high resolution.

Chinese interface, only basic welding skills are required to be competent in operation, without the need for specialized personnel.

The programming interface is user-friendly, just like operating a mobile phone. You can input the desired parameter size by entering numbers.

Real time display of welding voltage, welding current, walking distance/degree, and control of welding stroke to achieve automatic attenuation.

Accurately set the distance between the tungsten electrode and the workpiece, raise the tungsten electrode to the set value after touching the workpiece, and achieve high-frequency arc ignition.

Automatic fault diagnosis function, displaying error codes.

Modular design for easy maintenance and upkeep.

Comes with expert parameters and can store up to 50 programs.

Performance characteristic

★.Air protection control

★ DC/pulse current selection

★ Can choose DC/pulse mode, high-frequency induction during welding process, pulse frequency of 0.5-50Hz, can achieve welding stroke setting and automatic attenuation.

★ Rotation speed control: It can control the welding action direction (forward rotation, reverse rotation) and rotation speed control.

★ Wire feeding motion control: Select the wire feeding switch, set the wire feeding speed, wire feeding delay time, wire feeding retraction time, and can set increments to modify welding parameters during the welding process.

★ Automatic arc length control on/off: When used with an ON/OFF source, it can achieve TG all position welding and achieve ideal welding results.

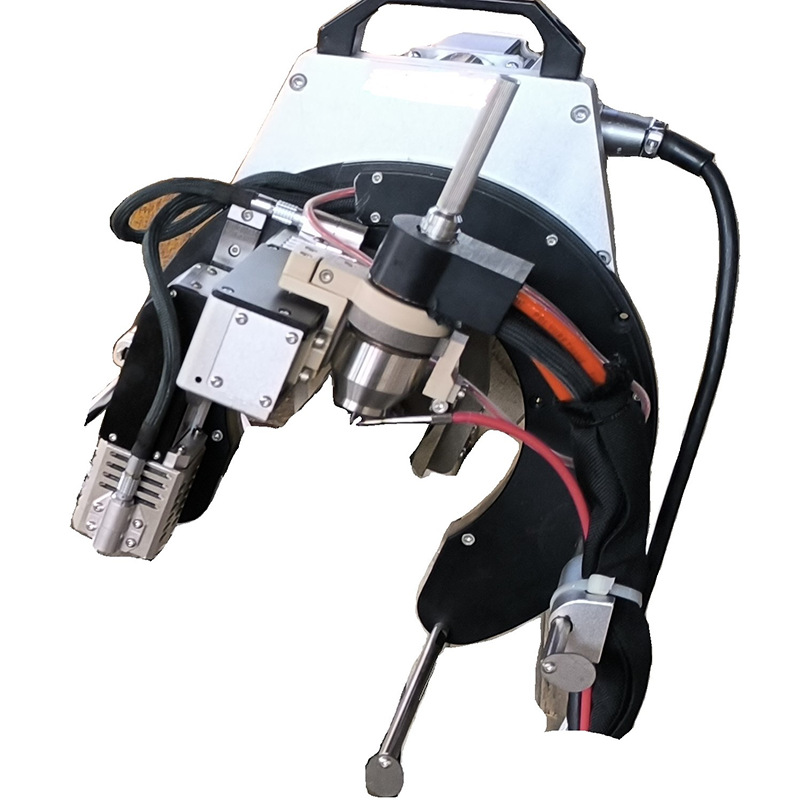

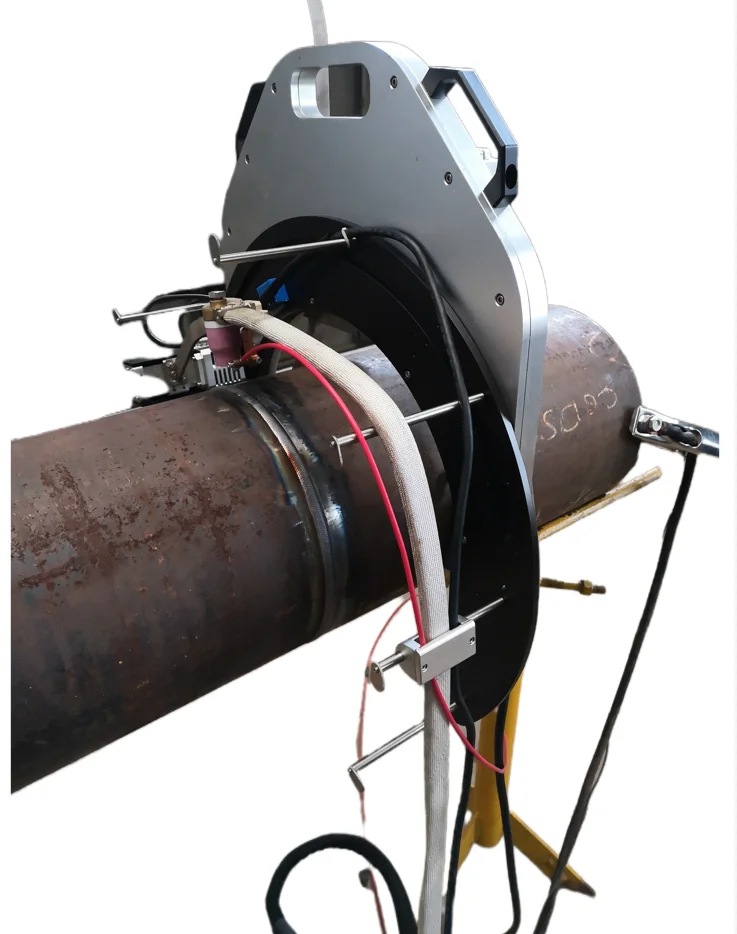

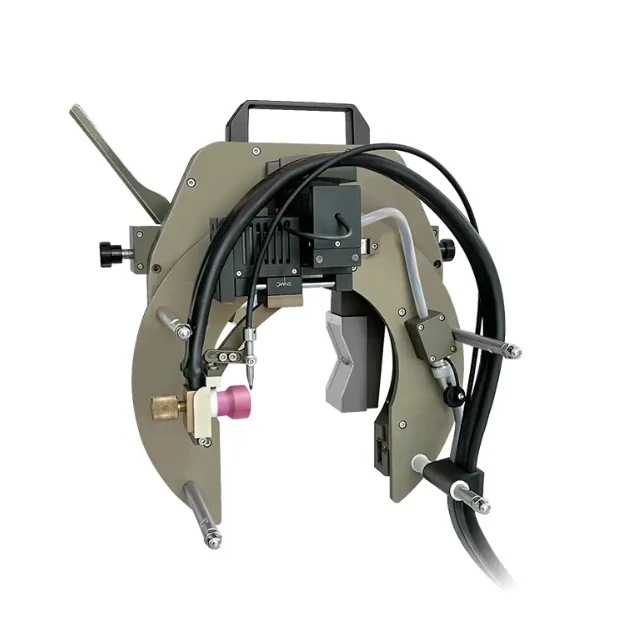

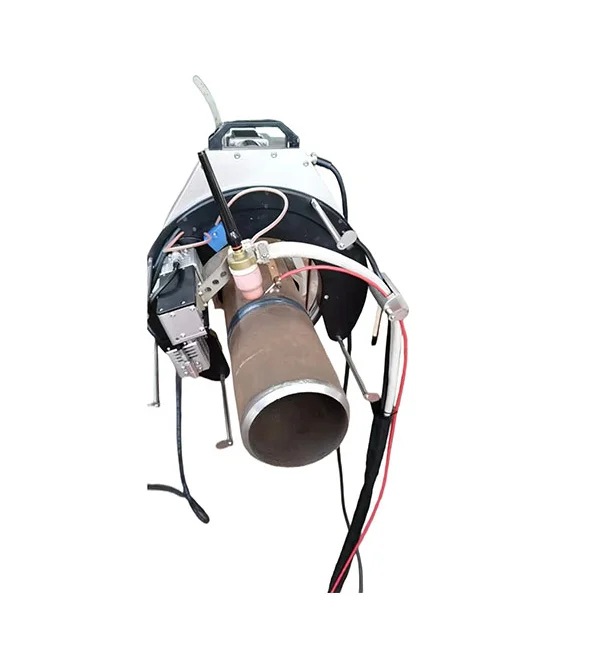

Open pipe and tube welding head
