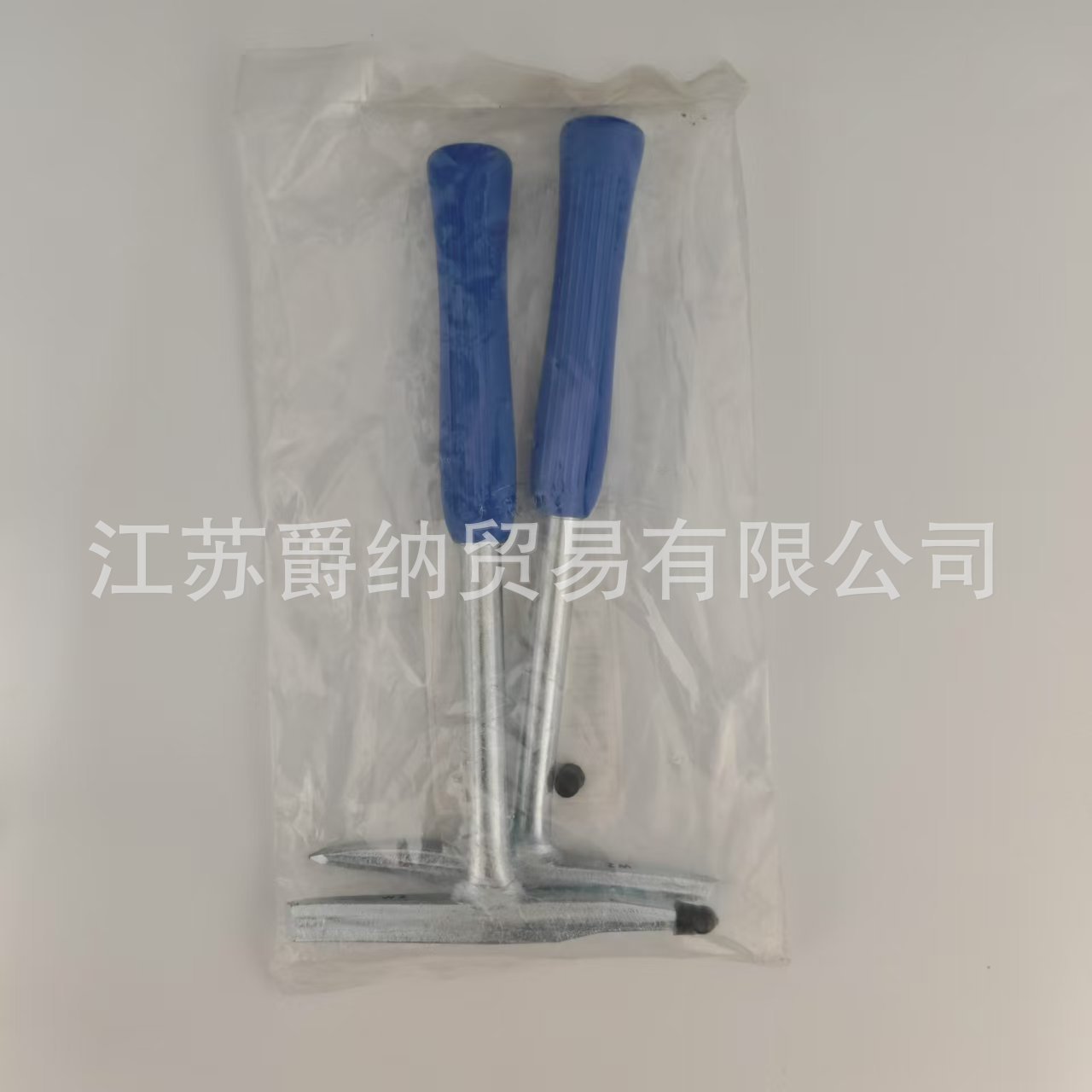

633008チッピングハンマーst. 2PCS

￥11,730

708554 FLASHBACK ARRESTOR W-66S

￥78,200

632992チッピングハマーズ駄目

￥12,650

743476マグネット & ボルトスティックパック

￥20,700

708550 フラッシュバックアレスタ W-66S 酸素

￥78,200

653899 returclamp400a

￥11,040

653881 returclamp200a

￥8,280

633065ウェルディングカーテンズW/HOOKS溶接カーテン

￥39,100

197 632794 TIG grove.6 PAIRSアルゴン溶接手袋

￥29,900

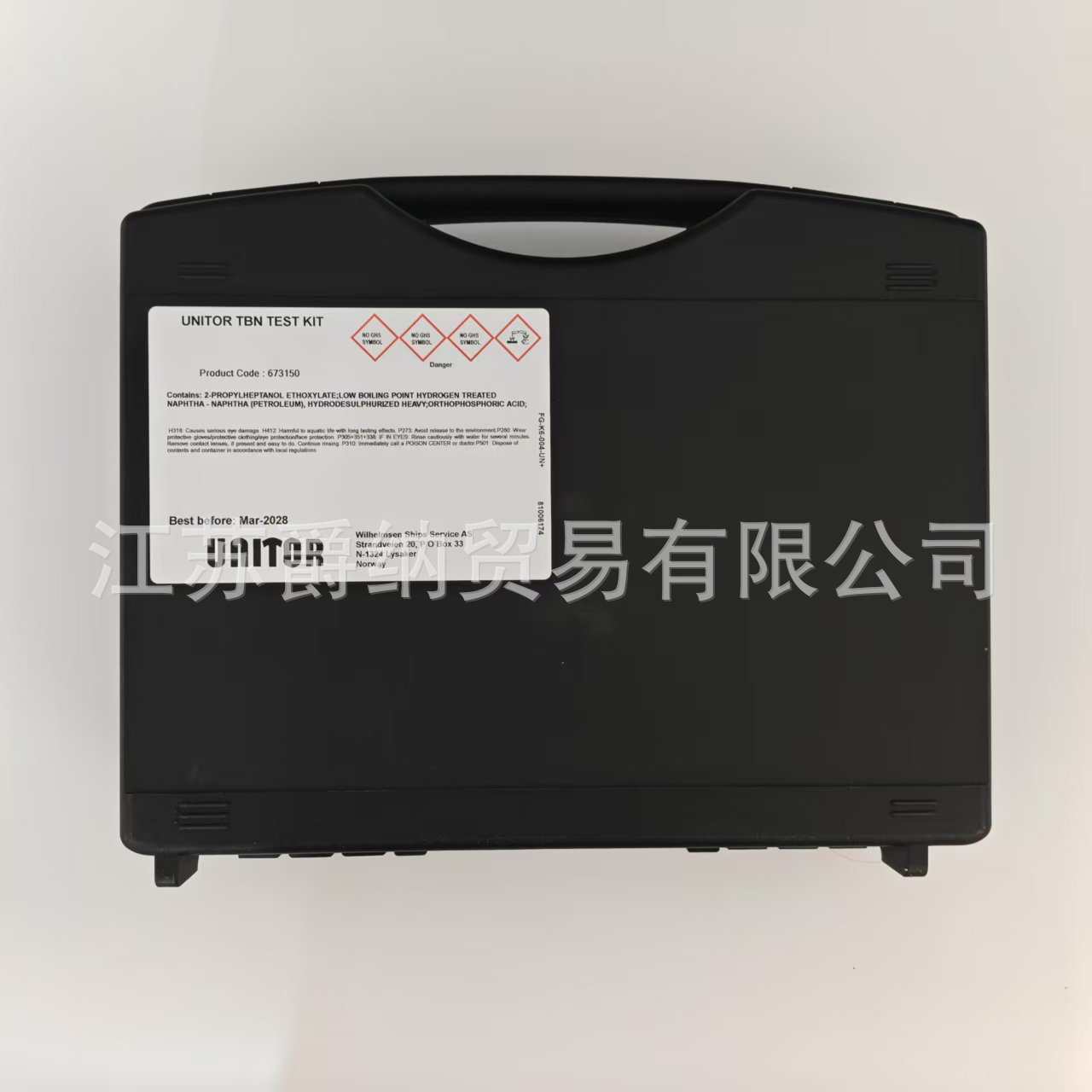

663 673150 UNITOR TBN TEST KIT

￥287,500

もっと調べます

製品詳細

FLASHBACK ARRESTOR W-66S OXYGEN

Product group:171
Product number:708550

No. 1 Choice for Flame Arrestors (Flashback Arrestors) certified and under surveillance by The Federal Institute for Materials Research and Testing (German: Bundesanstalt für Materialforschung und -prüfung, or BAM) and OCIMF/RIGHTSHIP compliant. Protect regulators and gas cylinder against flashback and detonation.

Product information

Maritime authorities, such as the Norwegian Maritime Directorate, require the installation of flashback arrestors for acetylene and oxygen, as incorrect maintenance or use of gas welding equipment may cause flashbacks of various types.

Normally these will stop in a well-designed torch and are only noticed as a popping sound in the torch. However, faulty handling, maintenance or gas pressure setting may lead to a penetrating flashback. This means that the gas flame passes back through the hose(s). In some cases, it may also pass the regulator and ultimately reach the cylinder.

The W-66S model flashback arrestors are designed for use on high flow rate, heavy duty applications especially on portable AC-OX gas cylinders. The flashback arrestors are built, conforming to: EN 730/ISO 5175 and with BAM Certification no.: ZBF/009/12.

**Safety**

For safety reasons in line with COSWP UK (BCGA CP7), OCIMF SIRE and RIGHTSHIP RISQ requirements, we strongly recommend annual testing of the flashback arrestors, and to replace flashback arrestors every 5 years.

Features

Pressure sensitive cut-off valve to prevent further gas supply after a flashback (activated by the pressure shock in front of the flashback).
Temperature activated cut-off valve to prevent further gas supply in case of fire (activated if the temperature rises to approximately 100° C).
Flame filter/arrestor to quench the flame front of a flashback or a burn back.
Non-return valve for preventing reverse flow of gases, thereby preventing a gas mixture from reaching pipelines or cylinders.
Resettable.
Marking of manufacturing date and serial number for traceability.

Benefits

Stops the pressure front and flame front.
Stops gas from back feeding into the system.
Prevents fire from being supported by gas.
Signal lever will show if the pressure sensitive cut-off has been activated; the lever is also used for resetting the flashback arrestor.

Specification

General

Invent Hazard Material (IMO/EU) classification	NA

Technical data

Operating pressure [bar]	10 maximum

Performance data

Capacity	105 m3/h
