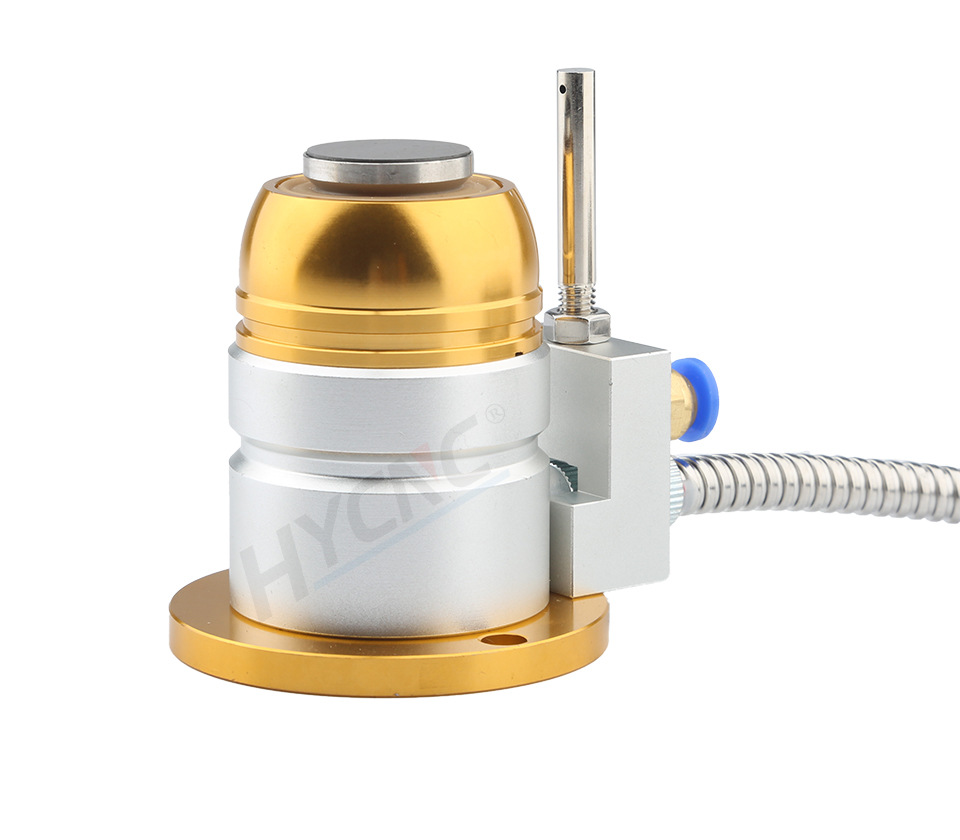

彫刻機の金色の対刀器の国境を越えたソース彫刻機のz軸自動対刀cnc対刀器部品対刀器

本店商品为跨境货源，适销的下游平台，以及地区，如速卖通、亚马逊、amazon、ebay、wish、AE、lazada、跨境、Aliexpress、ins、独立站。俄罗斯、东南亚、非洲、南美等。 支持一件代发。大量现货当天发，时效有保障。

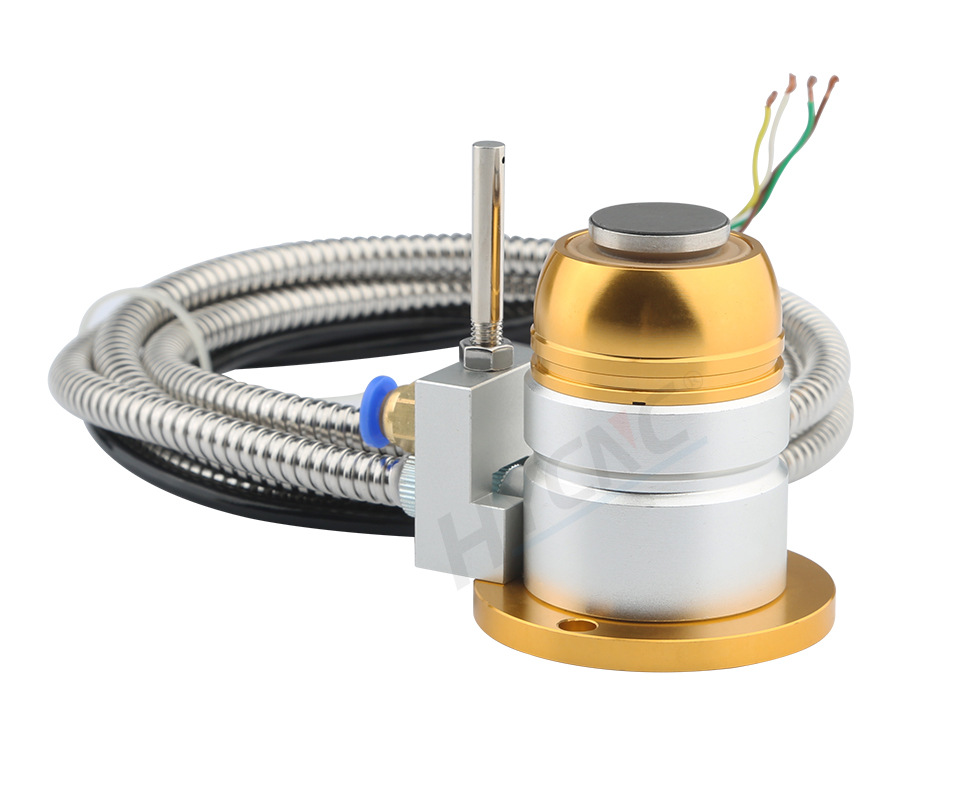

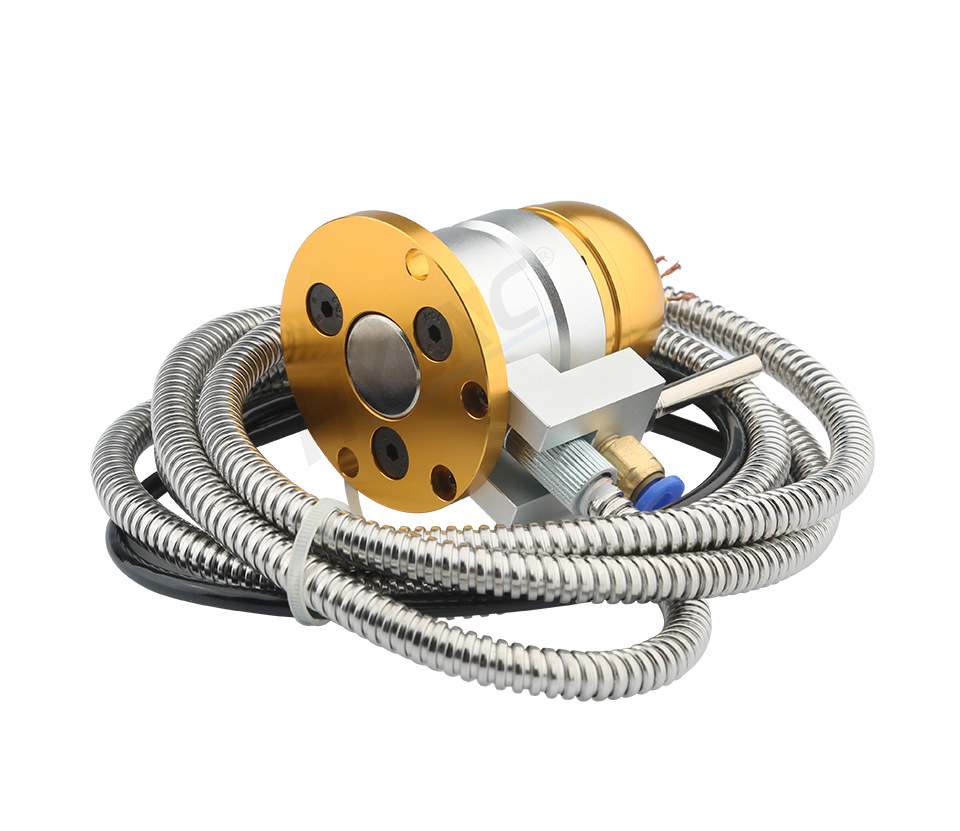

Specification:

Output mode: NC (normally closed) stroke

Almost 0 before

Stroke: 5mm

Repeat positioning accuracy: 0.001mm (working speed: 50-200mm/min)

Service life: 3,000,000 times

Contact force: 1.5N

Shell polishing: 4S

Protection level: IP67

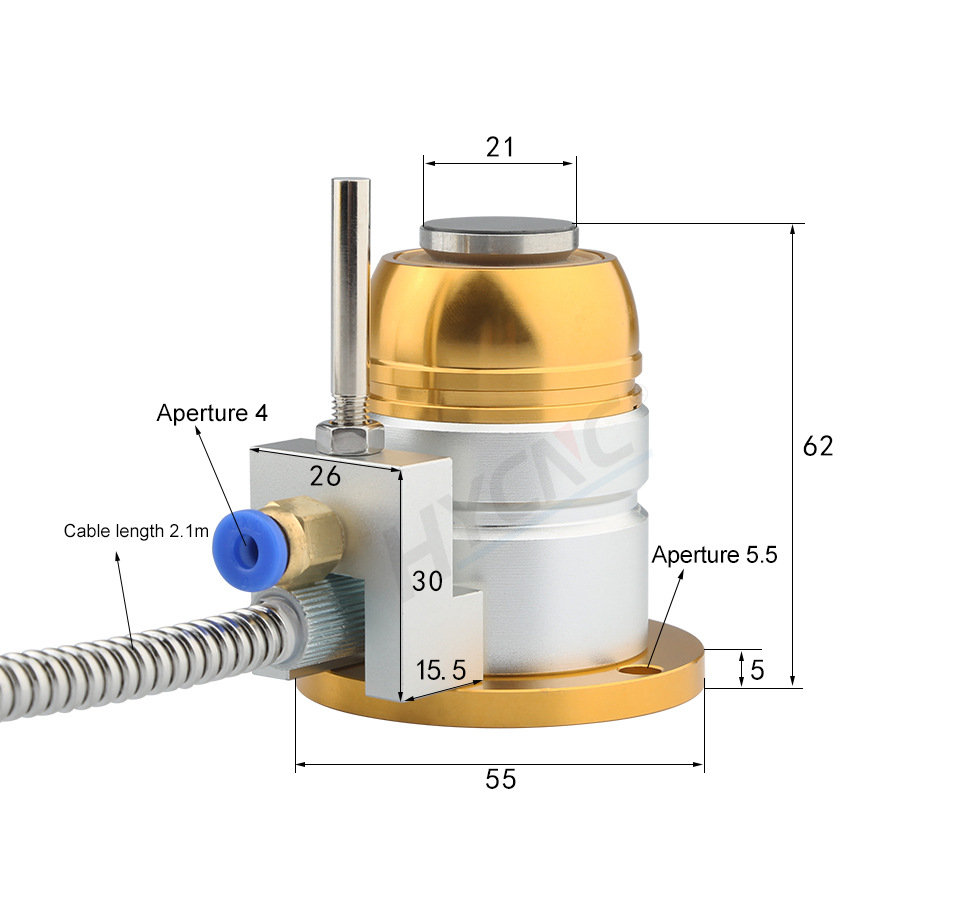

Tool diameter: 20mm

Material: cemented carbide.

Protection tube: 1m long minimum bending radius R25

Cable: 2 meters, oil-resistant, 4-core

Output specification: NC (normally closed), distance signal is about 5mm

Impact level: DC24V 20mA (MAX) 10mA (resistive load)

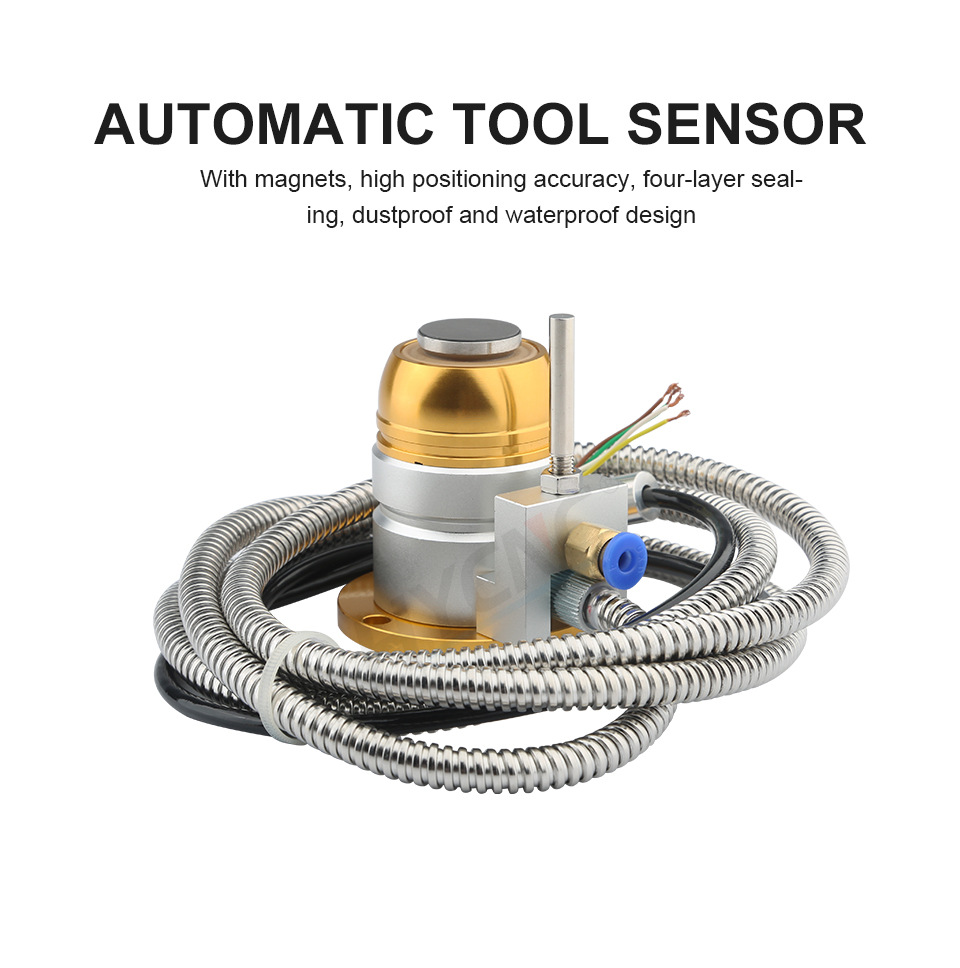

characteristic:

1. Waterproof and dustproof structure, with good durability in CNC processing.

2. It can greatly improve the tool setting efficiency in CNC machining.

3. When the stroke is exceeded, an alarm will sound.

4. Automatic detection of tool damage: If the tool is damaged or broken, the machine will automatically stop running and issue a warning.

Automatic tool wear compensation: Once the tool head wear is detected, the relevant program can be corrected to ensure the accuracy of the workpiece.

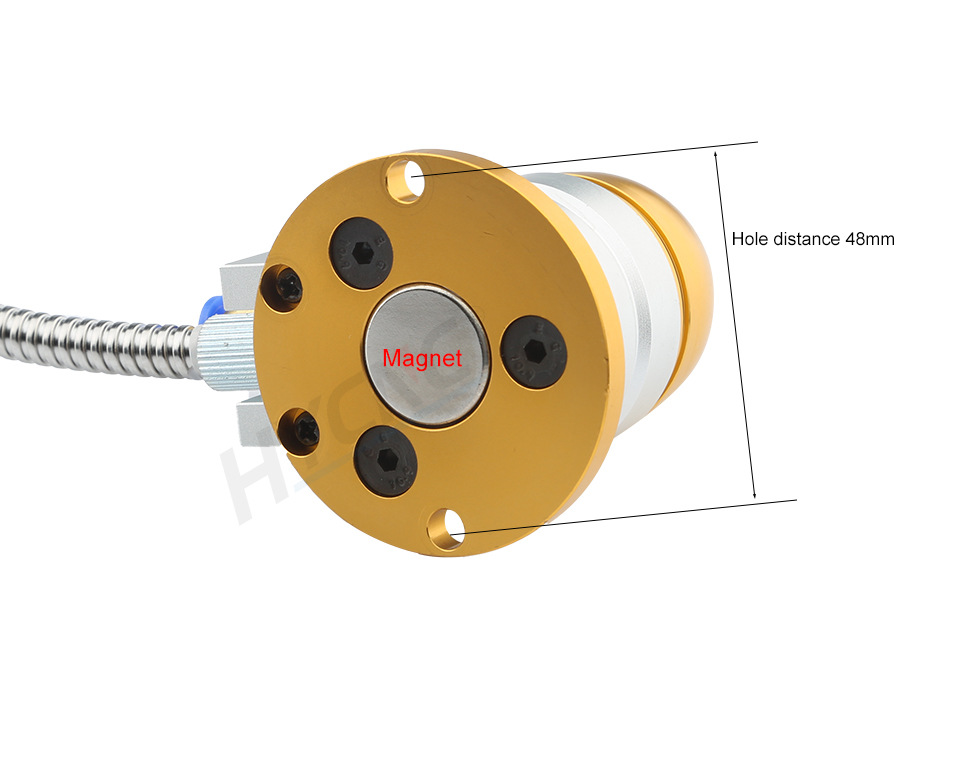

Installation Precautions:

1. The column and the tool setting device must be perpendicular to the contact surface and perpendicular to the contact surface. Please install them on a workbench with small iron filings as much as possible.

2. Make sure that the voltage is within the rated power supply range, please check DC10-30V, the current is less than 20mA, and the ambient temperature is -25°C-70°C. 3. Please control the tool diameter to be less than 20mm and the cutting speed to be less than 50-200mm/min. The center of the tool should fall on the center of the tool face.

Precautions for the use of the tool setter

1. The stroke of the tool setter cannot be exceeded during contact, otherwise the tool will easily damage the tool setter (stroke is 5mm)

2. When touching the contact surface of the tool setter with your hands, do not let it go immediately, so as not to damage the internal structure of the tool setter and affect the efficiency and life of the tool.

3. After the tool setting is completed, the tool must be lifted vertically away from the contact surface, and do not move laterally, which may damage the tool setting instrument.

Installation instructions for tool setting instrument

1. The contact surface of the tool and the tool setting instrument must be vertical, and contact with the contact surface vertically downwards. Try to install the tool on the working table where there is less iron filings, so as not to affect the accuracy of the tool setting instrument.

2, the rated voltage range of the use of voltage control in DC10-30V, current below 20mA, the use of temperature range of -25℃-70℃, the use of better effect.

3, the tool diameter of the knife control in 20mm below, the knife speed should be controlled in 50-200mm/min tool center should fall in the center of the knife surface.

4. When using the air blowing energy, the outer diameter of the trachea is 6mm and the inner diameter is 4-5mm. When using, attention should be paid to hygiene and the iron dust attached to the contact surface should be cleaned

Description of scope of use

Various CNC engraving machines, engraving and milling machines, jade engraving machines, woodworking cutting machines, etc. from Jiatie, Beijing Jingdiao, Ncstudio, LNC Technology, SYNTEC, MACH3, etc.

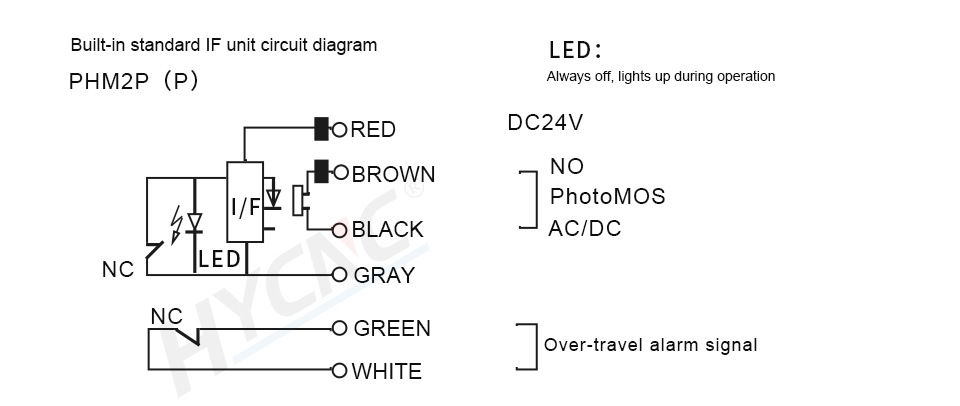

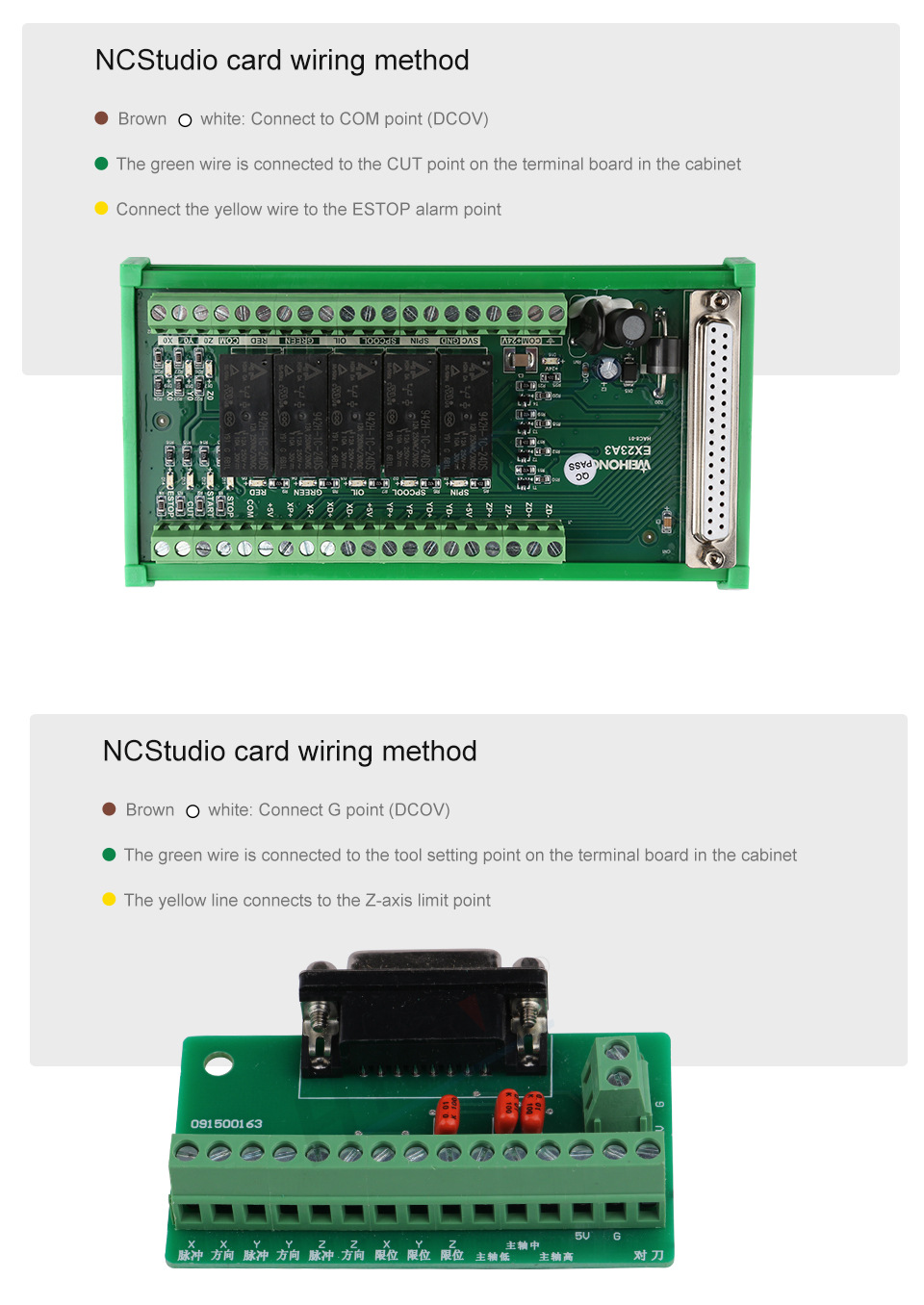

Wiring instructions for tool setter

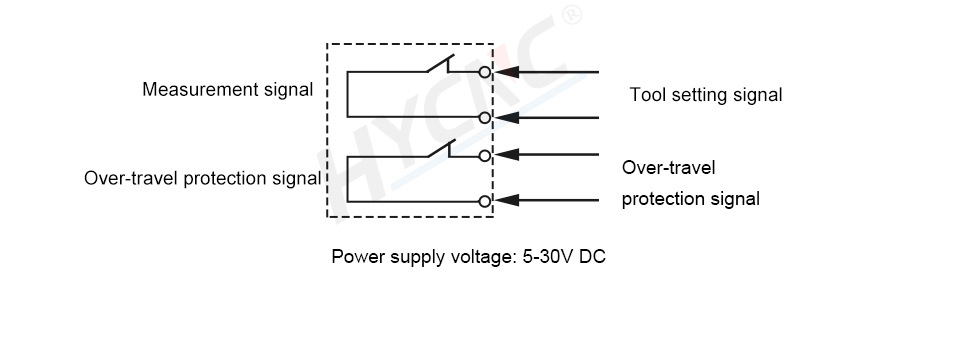

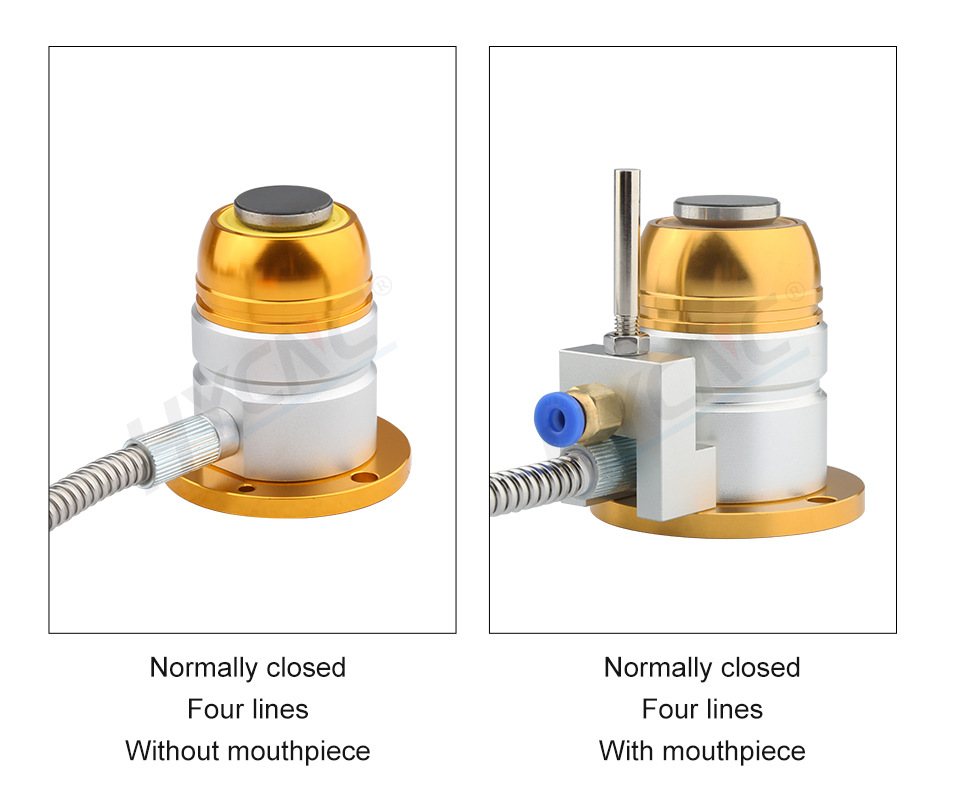

Normally closed 4-wire circuit diagram

Normally open 6-wire circuit diagram

Power supply voltage: DC24V

Current consumption: 10mA

Output specifications: DC60V 100mA (resistive load)/AC60V/100mA (peak value)/500mW (Max)

Dustproof and waterproof, durable

Dustproof and waterproof design, it can still work stably under the condition of coolant and iron flying.

No built-in amplification

No deviation caused by temperature and power supply voltage fluctuation in the position of the tool instrument can be directly input to NC program

Prompt response of alarm signal

Alarm signal will be sent out in time when the travel is over, so as to avoid other troubles caused by the operation of the equipment, which is more convenient to use.

High precision and strong anti-jamming

The protruding sharp corner of the tool directly touches the tip of the tool related to the processing size, detects its value and size, and outputs the signal, so it has higher accuracy than the average value obtained by the light quantity and electricity conversion using laser and energization methods.
