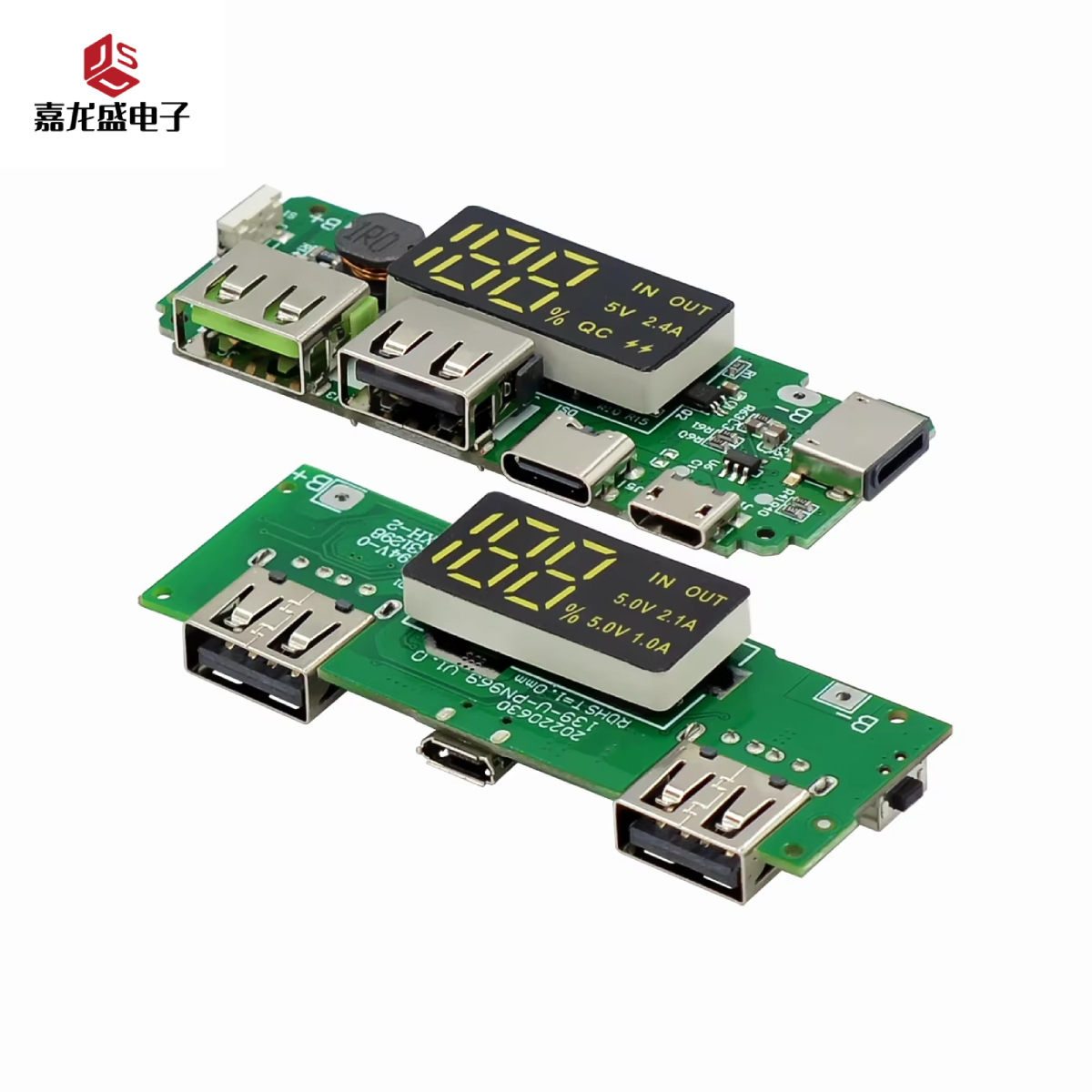

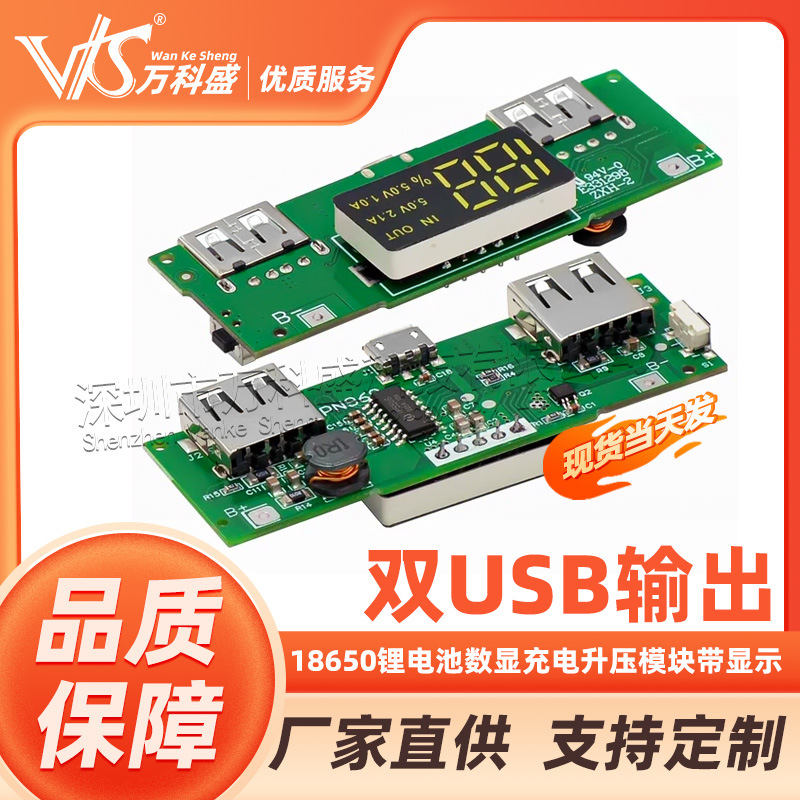

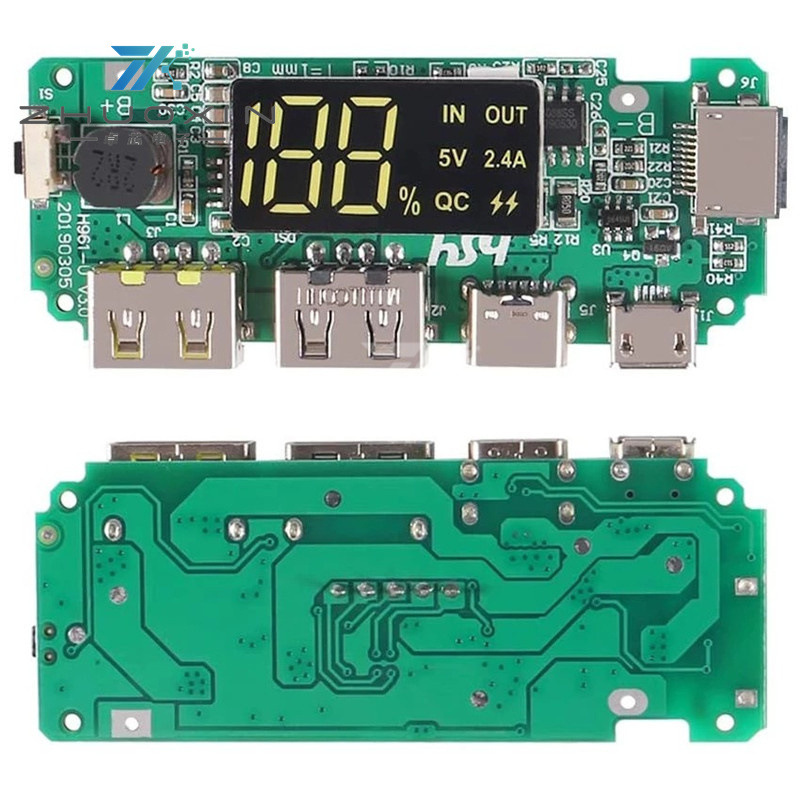

18650リチウム電池デジタル表示充電モジュール5v 2a 2a 1aダブルusb出力帯表示昇圧モジュール

No

Item

Condition

Specification

1

电池输入电压/input Voltage

B+/B-间输入电压/input Voltage B+ to B-

3.0~4.2V

2

过充电

Overcharge

保护电压/Detection voltage

4.20±0.05V

3

恢复电压/ Release voltage

4.100±0.05V

4

保护延迟时间/ Detection delay time

<200 ms

5

过放电

Over discharge

保护电压/Detection voltage

3.0±0.10V

恢复电压/ Release voltage

3.10±0.10V

7

保护延迟时间/ Detection delay time

<100 ms

8

放电恒流

Outputconstantcurrent

放电恒流保护电流/constantcurrent

2A

9

短路保护

短路保护延时/ Short detection delay time

<50uS

10

恢复条件/ReleaseConditions

断开负载/Cut off load

11

自耗电

Normal current consumption

工作状态自耗电/Normal current consumption of PCM

Max 60uA        （仪器测试时屏蔽）

12

静态自耗电/Stanby current consumption

Max 50uA

13

0V充电/0V charger

是否允许0V充电/allowed 0V change

Y

14

建议工作条件

Suggest working conditions

建议最大持续充/放电电流/maxcontinuous charge/discharge current

1.5/2A

15

建议工作温度/suggest working temperature

-5～45℃

16

内阻/IR resistance

PCM内阻/ IR of PCM

≤65mΩ

17

PCM尺寸

The size of final PCM

长度/ The length of final PCM

68.1MM

18

宽度/ The width of final PCM

24MM

19

厚度/ The thickness of final PCM

1.0MM

20

外观

Appearance

1)    没有元器件的破损/Nothing part deflection

2)    所有焊点良好/The status of solder is all right

3)    PCM没有翘曲/ PCM will not crook

4)

OK

No

Item

Condition

Specification

1

充电输入电压/charge voltage

4.5~5.5V

/

No

Item

Condition

Specification

1

电池输入电压/input Voltage

B+/B-间输入电压/input Voltage B+ to B-

3.0~4.2V

2

过充电

Overcharge

保护电压/Detection voltage

4.20±0.05V

3

恢复电压/ Release voltage

4.100±0.05V

4

保护延迟时间/ Detection delay time

<200 ms

5

过放电

Over discharge

保护电压/Detection voltage

3.0±0.10V

恢复电压/ Release voltage

3.10±0.10V

7

保护延迟时间/ Detection delay time

<100 ms

8

放电恒流

Outputconstantcurrent

放电恒流保护电流/constantcurrent

2A

9

短路保护

短路保护延时/ Short detection delay time

<50uS

10

恢复条件/ReleaseConditions

断开负载/Cut off load

11

自耗电

Normal current consumption

工作状态自耗电/Normal current consumption of PCM

Max 60uA        （仪器测试时屏蔽）

12

静态自耗电/Stanby current consumption

Max 50uA

13

0V充电/0V charger

是否允许0V充电/allowed 0V change

Y

14

建议工作条件

Suggest working conditions

建议最大持续充/放电电流/maxcontinuous charge/discharge current

1.5/2A

15

建议工作温度/suggest working temperature

-5～45℃

16

内阻/IR resistance

PCM内阻/ IR of PCM

≤65mΩ

17

PCM尺寸

The size of final PCM

长度/ The length of final PCM

18

宽度/ The width of final PCM

19

厚度/ The thickness of final PCM

1.0MM

20

外观

Appearance

1)    没有元器件的破损/Nothing part deflection

2)    所有焊点良好/The status of solder is all right

OK

No

Item

Condition

Specification

1

充电输入电压/charge voltage

4.5~5.5V

/

2

涓流充电阈值/Charge Threshold

Vbat (th)=3.0V

200±50mA
