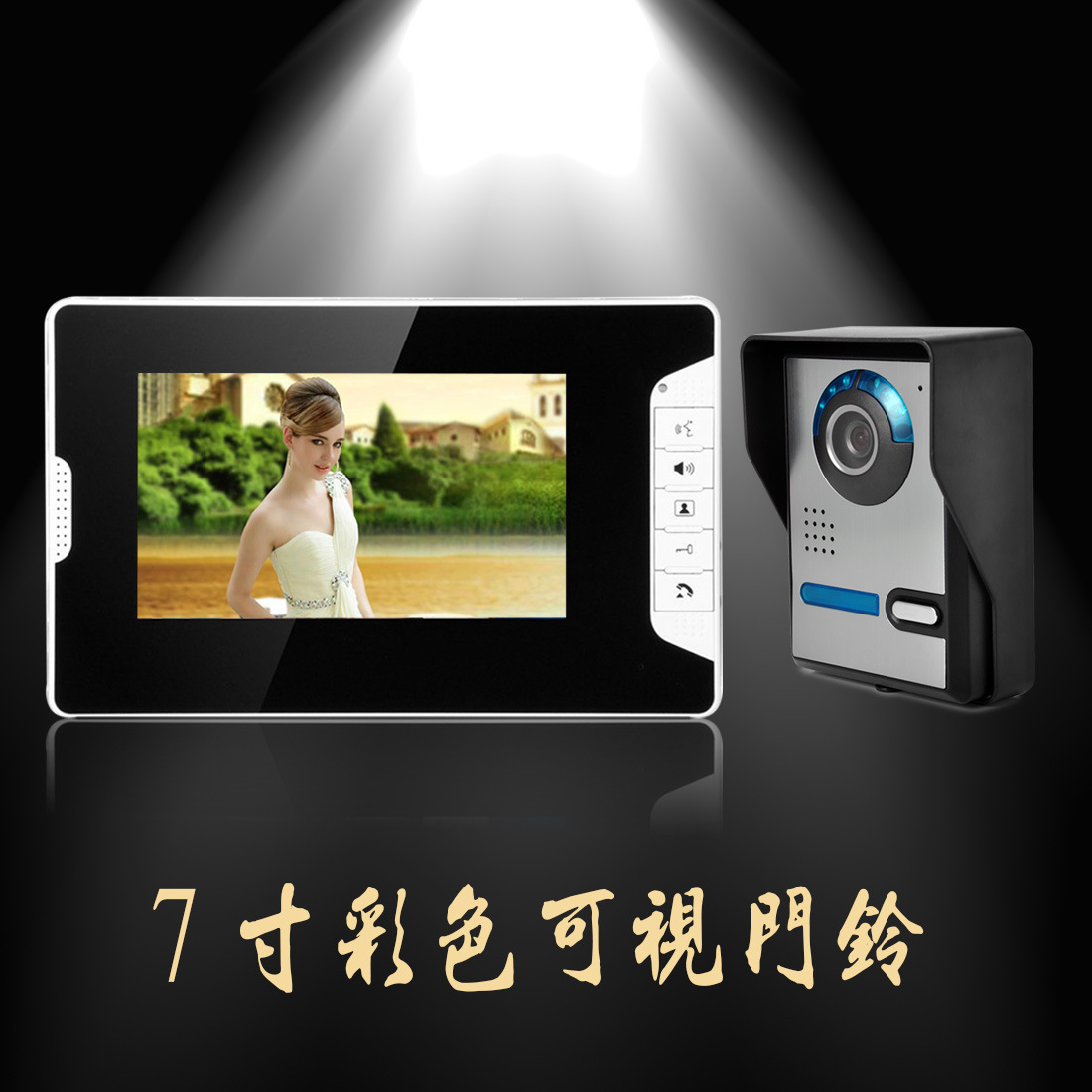

7インチの高精細有線カラーテレビのドアベルのビルはレイドベルの門限に対して1対1で卸売りします。

                           本产品适用于各国家出口

7寸大屏，对讲及视觉效果完美,给您畅享高科技带来的生活享受.

国际品质 ，CE，FCC认证

产品型号：SY806FC11系列产品

一。功能特点：

 室内机：带监视,对讲,开锁,铃声选择,室内对讲，音量大小，亮度，色度调节功能。

1、7寸TFT液晶，无辐射、低功耗，高清晰度的宽屏图像。

2、免提对讲功能.

3、电控开锁功能.

4、有监视室外的功能.

5、图像亮度、色度、铃声音量、对讲音量可调节.

6、室内机超薄型铝面板设计，蓝光触摸按键 美观尽显豪华气派.

7、16种和弦声可选，不会老是听到单调的门铃声.

室外机：

1，防氧化亚克力及耐磨表面处理的室外机壳，摄像机高清700线，无偏色。

2、超强防雨，IP55防水等级，蓝光按键显示，带夜视红外功能,壁挂式安装简单方便.

3，可以接通电开锁和断电开锁。

4，可接出门开关。

二。性能参数：

1、开关电源：AC220V--50Hz DC15V 1.2A

2、整机电流：小于800mA

3、通话延时时间：120S±10%

4、监视延时时间：60S±10%

5、摄像机传感器： 700线

6、镜头： 3.6MM92度

7、室外机带红外夜视功能

8、室内机外形尺寸:见图片

9、室外机外形尺寸：见图片

10、室外安装方式：壁挂式

三。产品清单：

1、7寸彩色液晶显示器室内分机：按选配标准

2、室外主机：按选配标准

3、连接线：按选配标准

4、开关电源：按选配标准

5、说明书1本（中英文可选）

6、螺钉包

四。英文资料:

Model:SY806FC11

A.Feature:

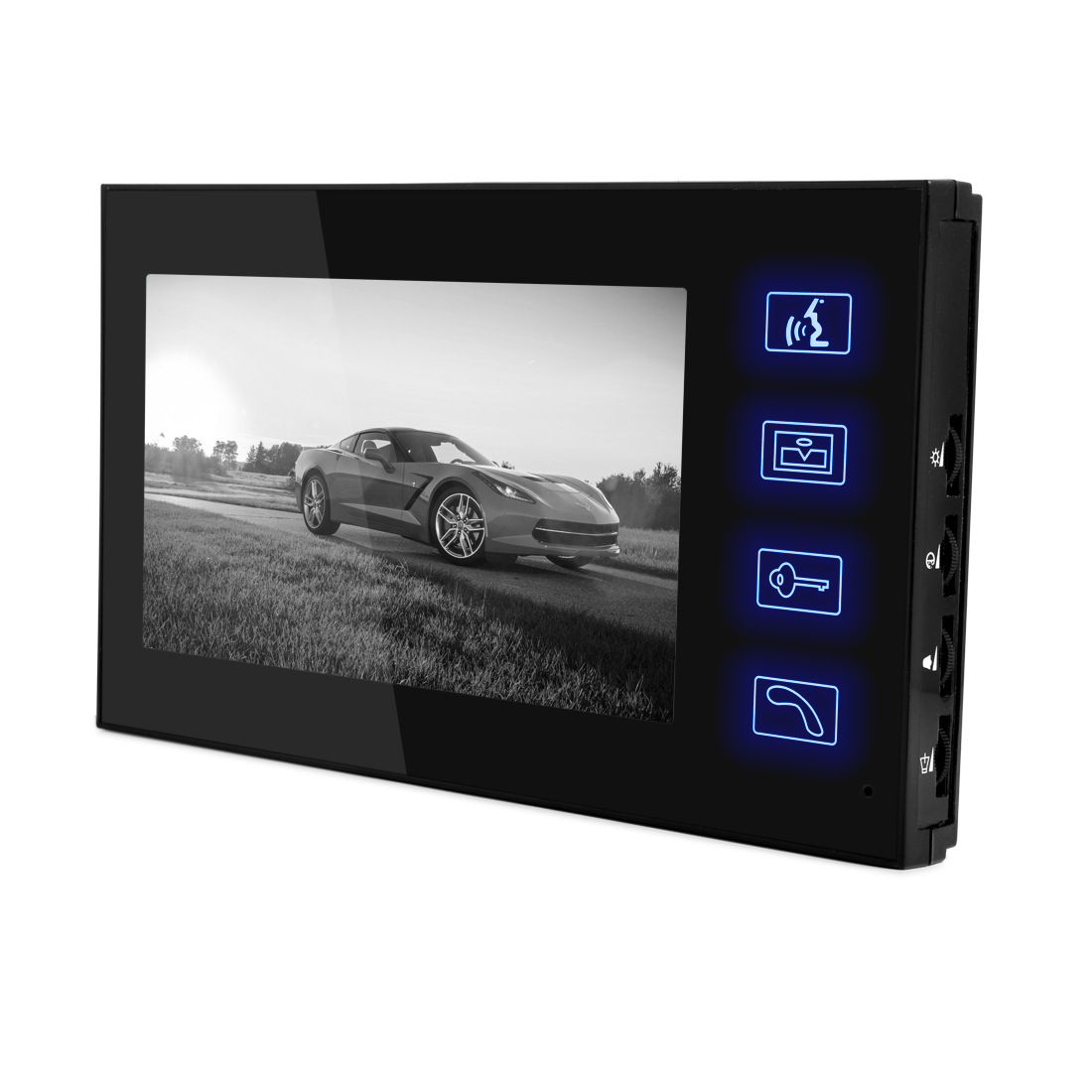

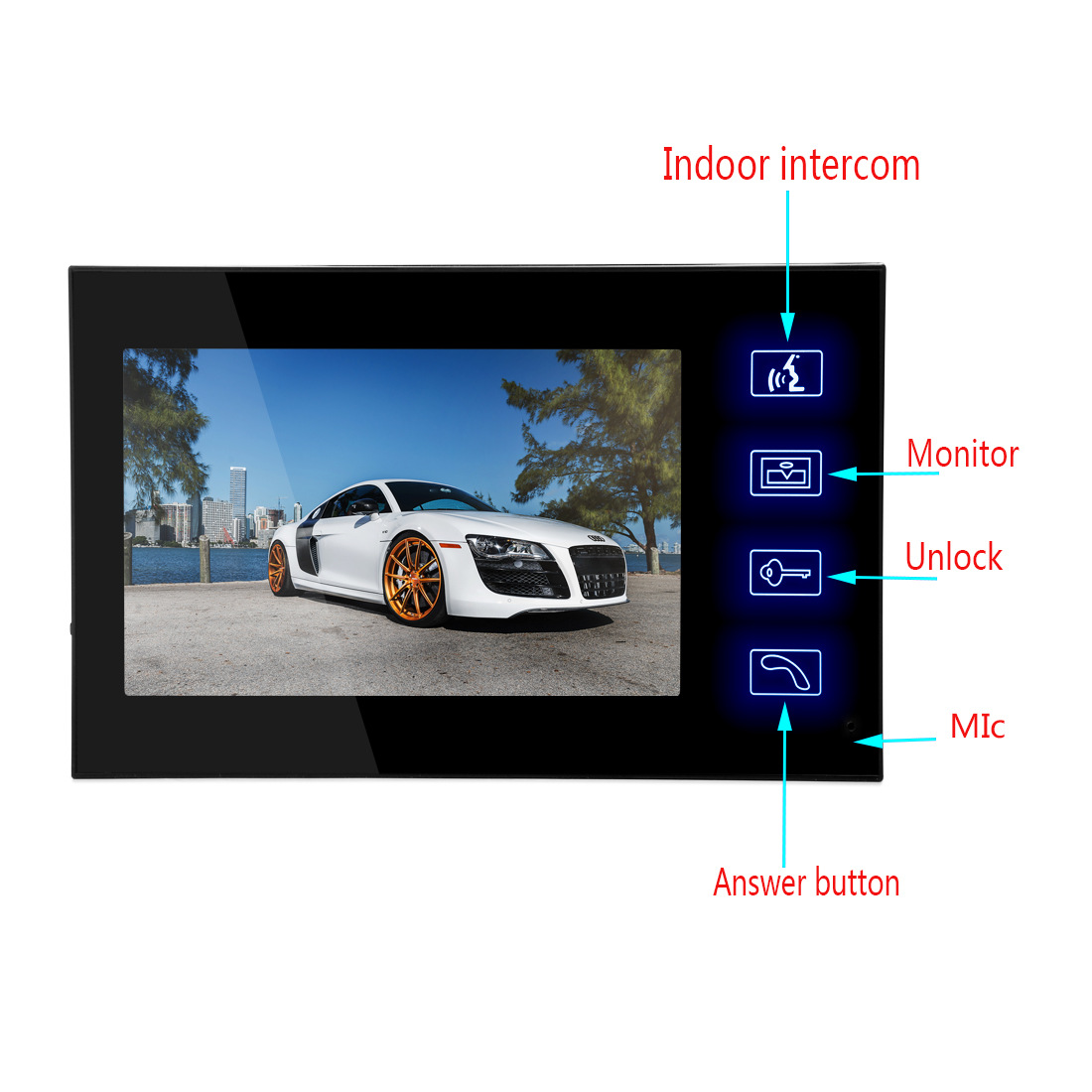

Indoor Unit:

It is have Surveillance 、Talkback、Unlocking、Ring music choice
Indoor intercom、Sound volume control、
Brightness and Color Adjustment function

1.7Inch TFT LCD, nonradioactive,
low power consumption, High definition widescreen image.

2. Hands-free intercom
function

3. Monitoring functions. The remote unlock function

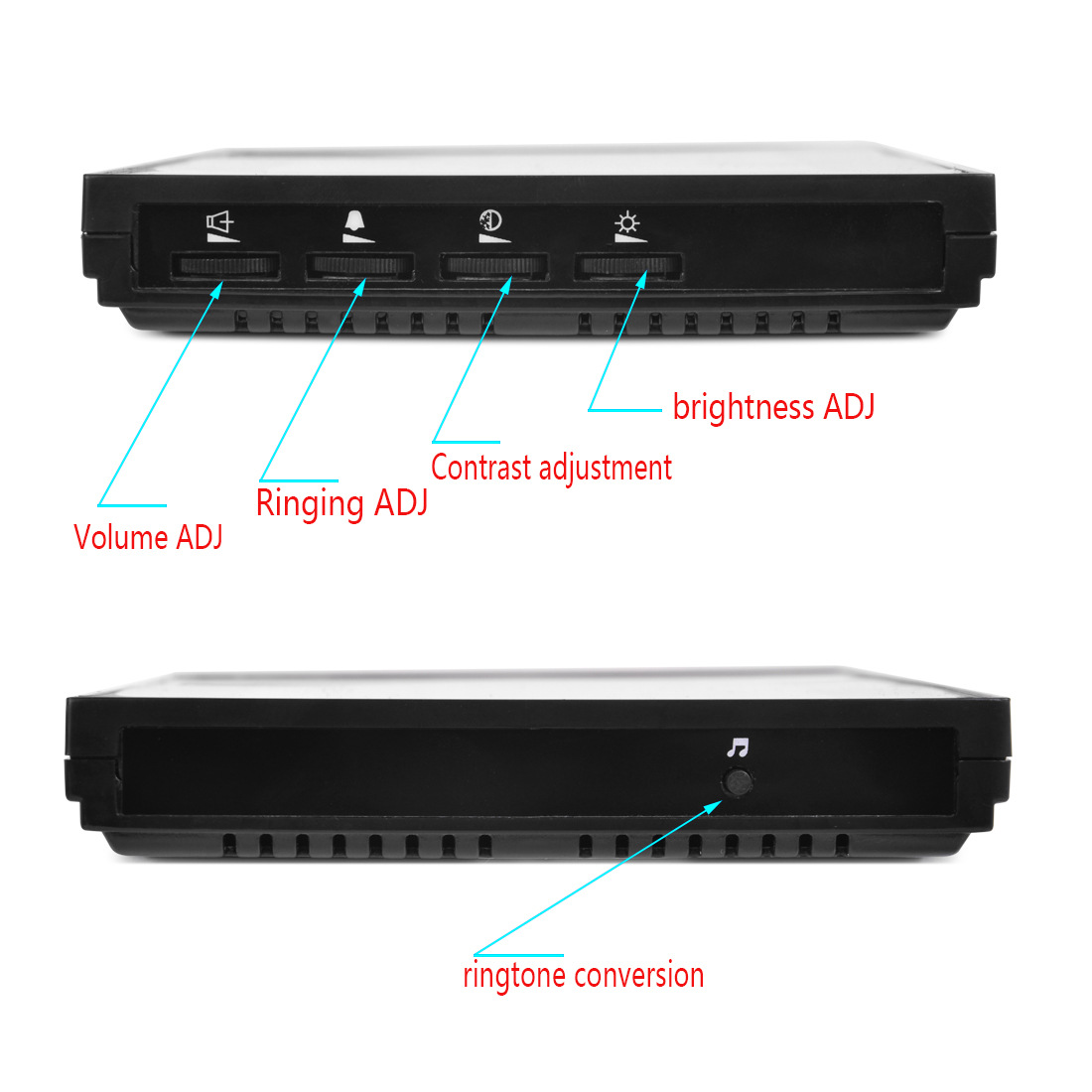

4. Image brightness, Chroma , Ring music choice, Sound volume control
can be adjusted.

5.Ultra-thin aluminum panel ABS design.

6.16 different polyphonic
sound Ring music choice，will not always hear the monotone of Doorbell ring.

7.Hang a wall to install

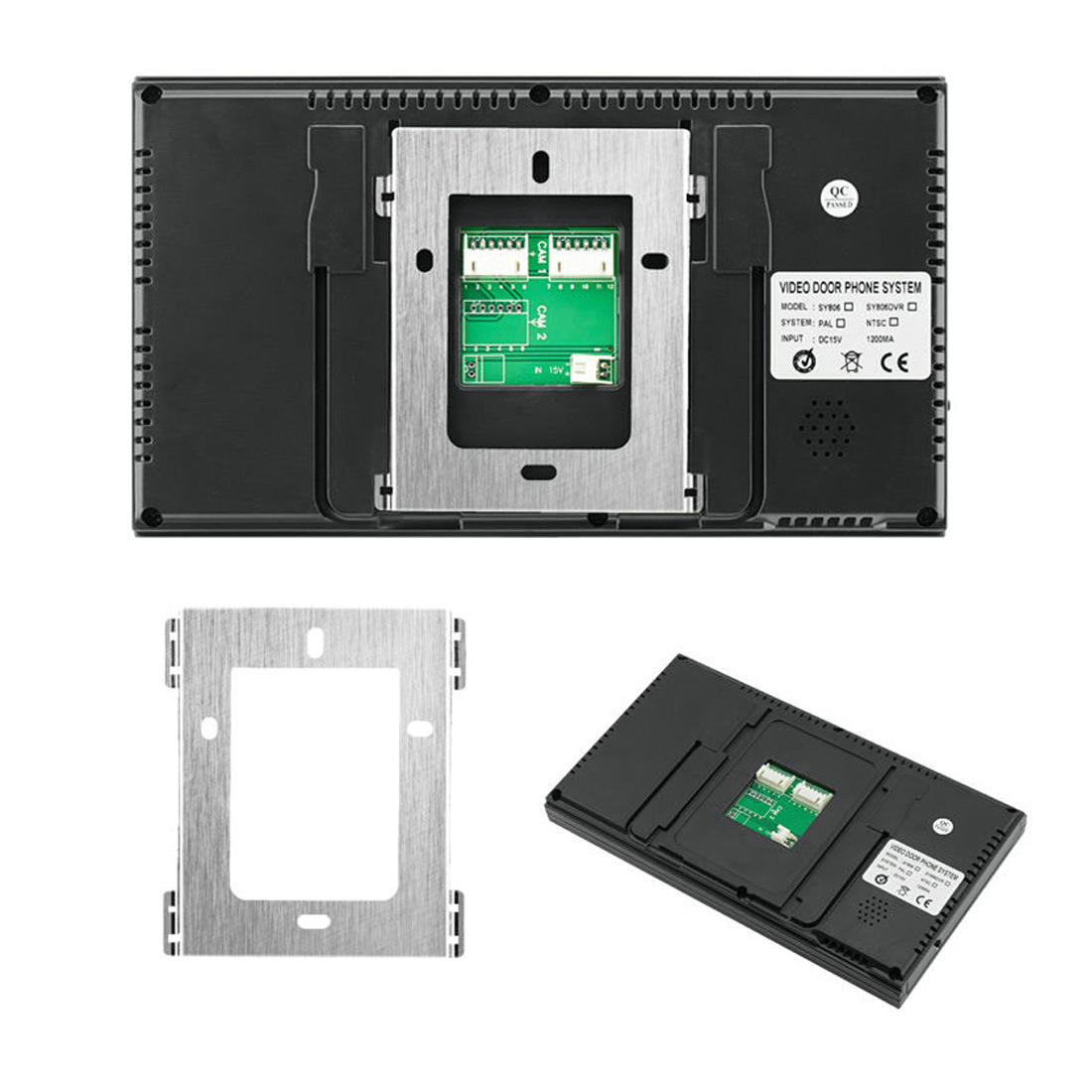

8.Indoor Size :22.5*112.8*2.3CM

9.Connection mode:（outdoor unit to indoor unit Used to 4 Core cable)

10.power supply mode: DC15V/1.2A

11.two indoor unit can one to one Talkback

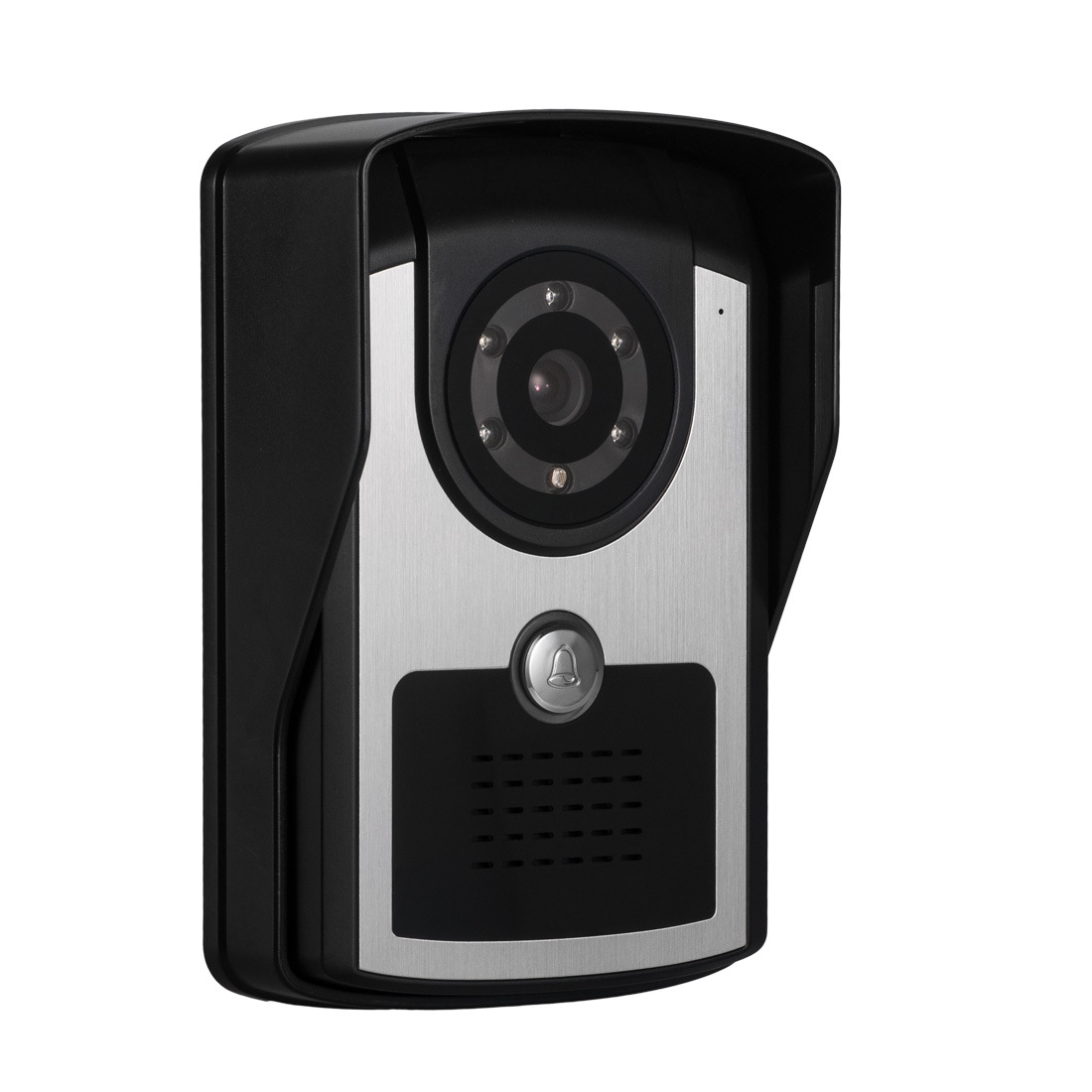

outdoor unit:

1.Antioxidant Acrylic plate and wear-resisting
ABS shell.

2.1099 COMS HD photosensitive Chip,700TVL ,3.6mm Lens, angle of view 92 degrees.

3. Infrared night vision function (5 PCS IR Led + 1 PCS light resistance).

4.Touch Keypad, Blue backlight,IP55 Water proof cover.

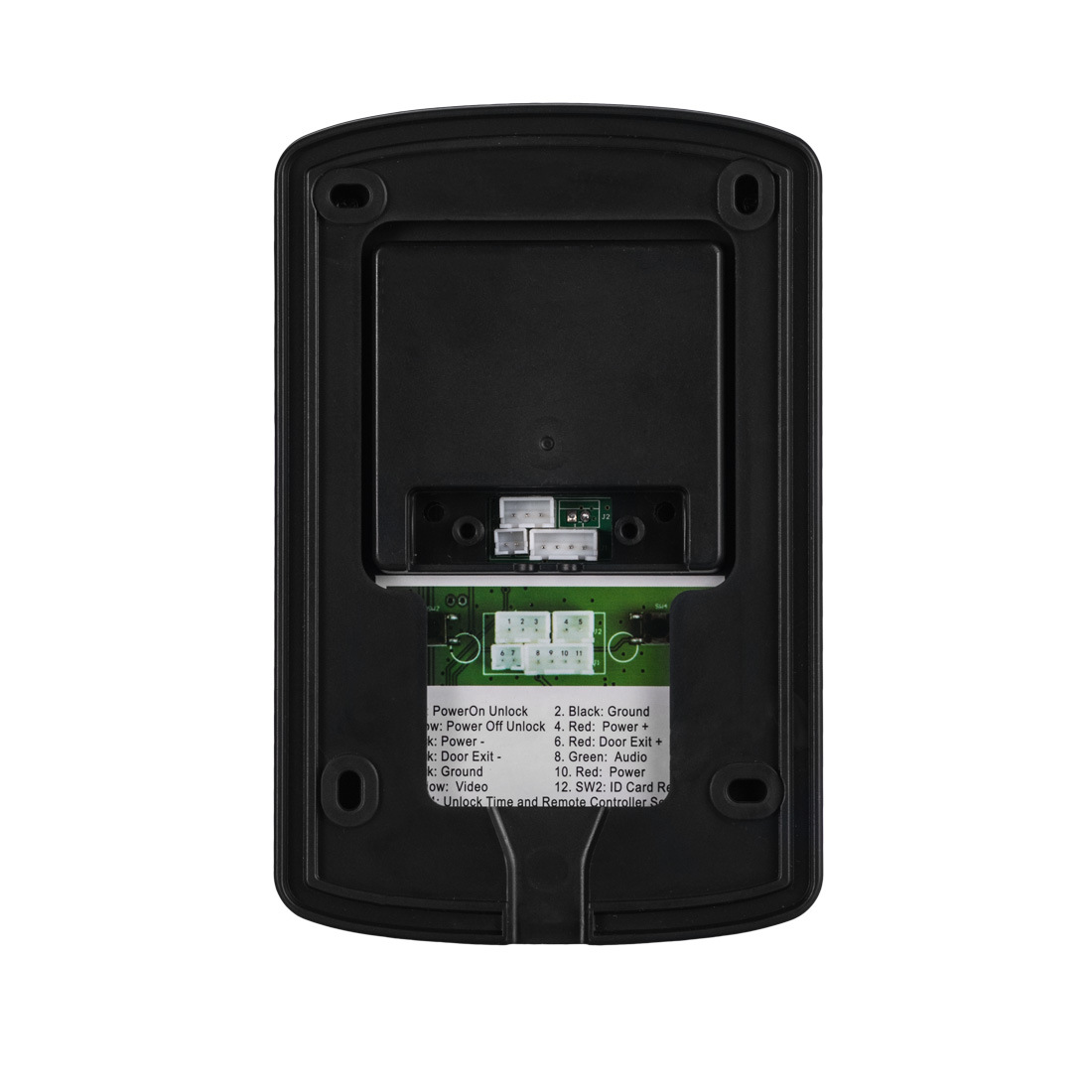

5.It is have Power to unlock, Power lock,Exit Button unlock Function

6.Hang a wall to install.

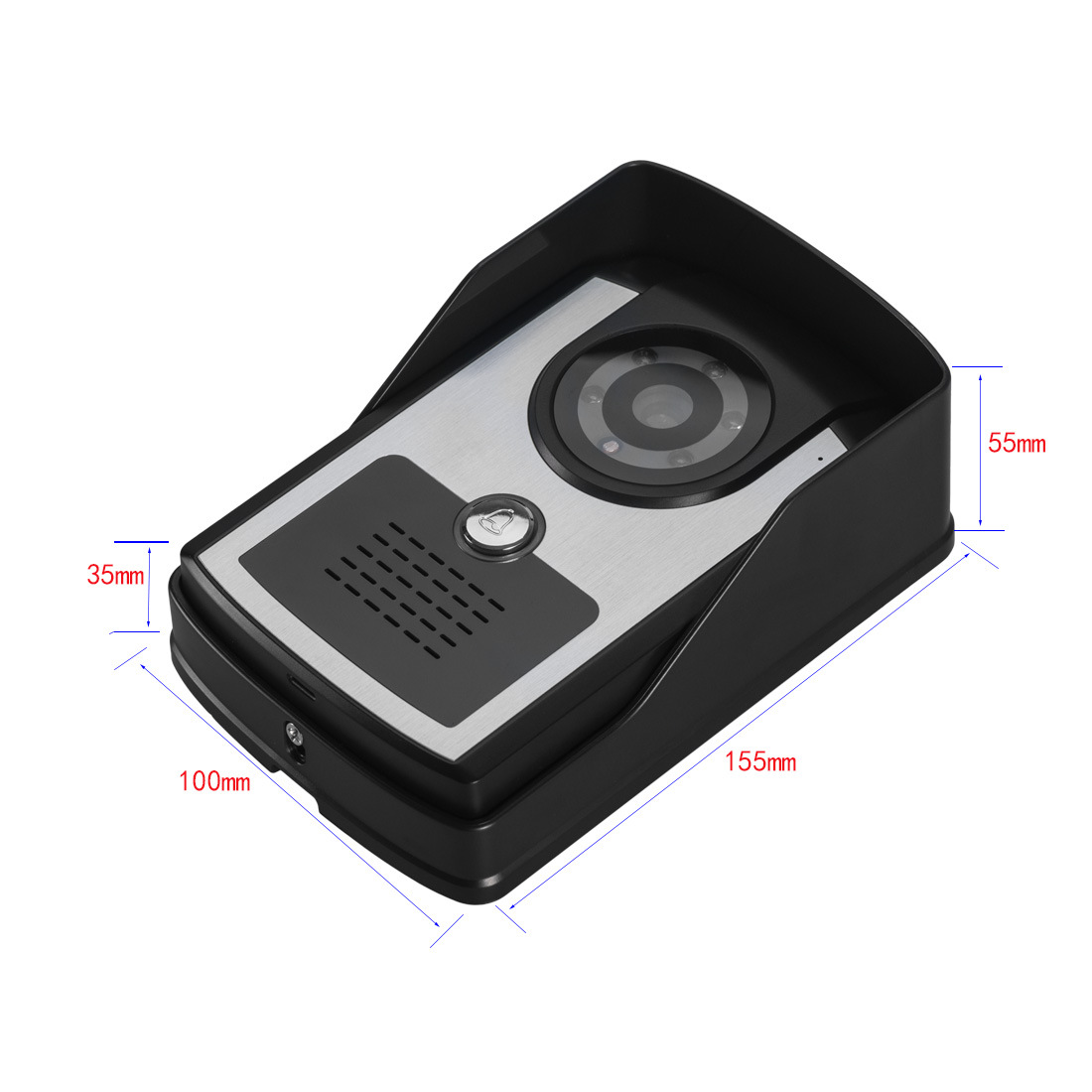

7.outdoor unit size: 155*100*55MM.

8.Connection mode:4 Core cable

9.power supply mode: DC15V/1.2A

B. Performance parameters：Power supply

1、Power supply：AC100-240V/ DC15V 1.2A/50/60HZ

2、Machine current：less than 800mA

3、Call delay time：120S±10%

4、Surveillance delay time：60S±10%

5、camera sensor ： 700TVL

6、Lens: 3.6mm Lens, angle of view 92 degrees

C．Package List:
1.7 inch Color TFT LCD Indoor unit *1

2.Outdoor unit *1

3、Connection cable *2

4、Ac Power supply *2

5、Manual *1
6、Screw package*1

6,3 Core unlock cable*1

7. 4 Core switch Cable*1（spare）

D．Wiring Requirements：
By actual test,please select the wire specifications, please refer to.

1. Within 15 meters can choose with five types of Lan cable

2. 16-30 meters please choose four core pure copper cable with 0.3 square

3. 31-50 meters please choose four core pure copper cable with 0.5 square

4. 51-80 meters please choose four core pure copper cable with 0.75 square.

5. 80-120 - m please choose 1.0 square four core pure copper cable
6. 120-150 - m please choose 1.5 square four core pure copper cable.

E．matters need attention

Our products pass strict before they go out of functional testing, appearance inspection, when you receive the product,，Please operate the following contents:

1. Check whether there is any damage on the packaging.

2. According to the product operating instructions, the wiring diagram connectivity products, check whether it is right

3.Test the product function
If everything is normal, can be happy, please use my company's products the use
I wish my friends happy, welcome to buy again!

Product selling point: 1. Avantgarde design, blue backlight display button. 2, duplex intercom, clear sound. 3, ourdoor unit waterproof, durable. 4, easy installation, quality assurance

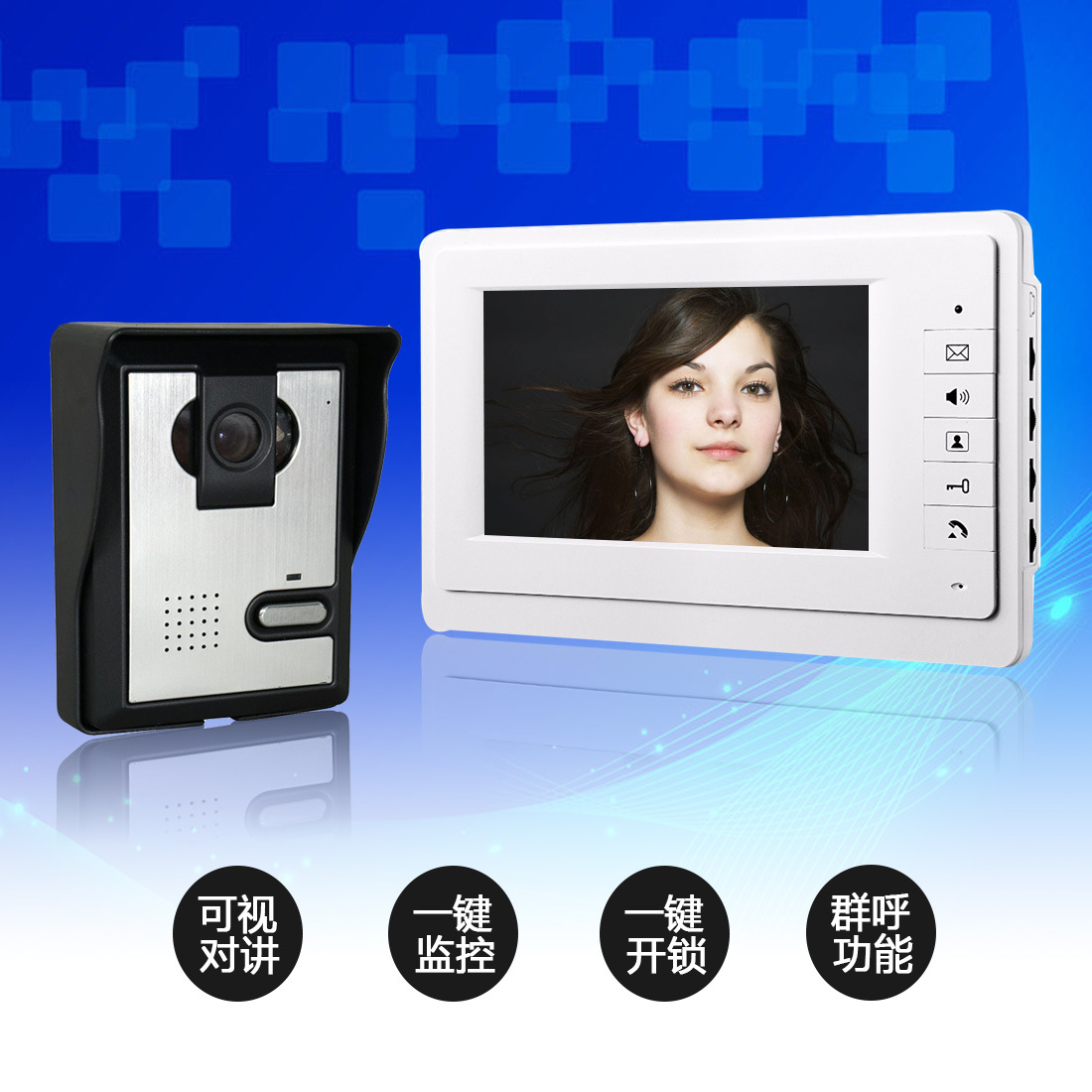

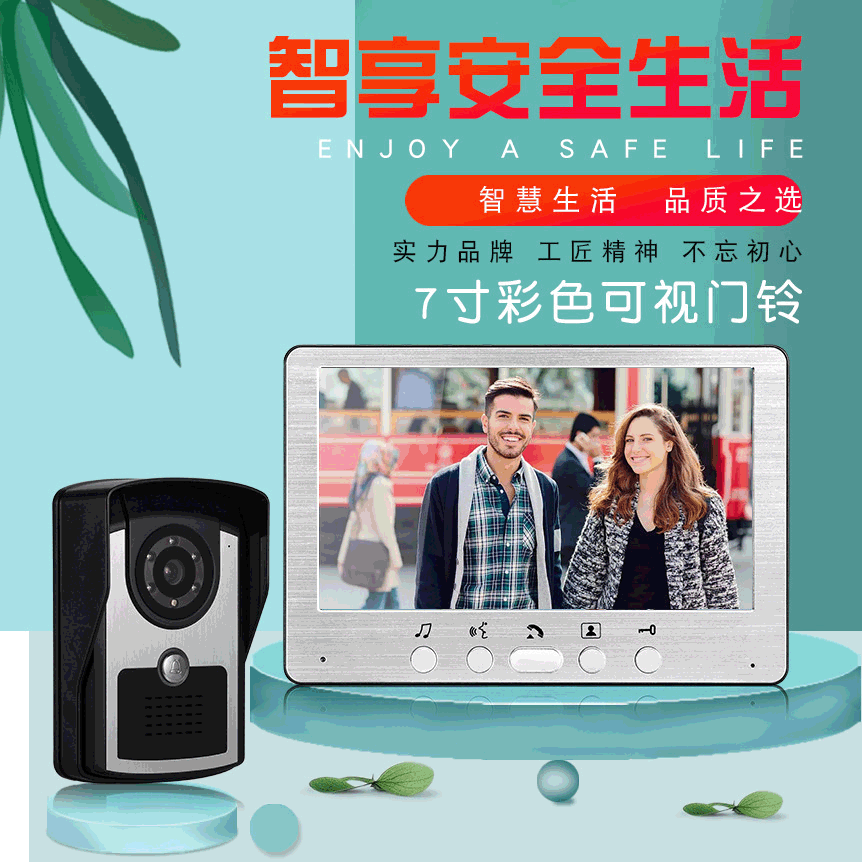

五:产品图片:
