WiFi攻防防犯ツールDeautherMiniV3テスト開発ボードプログラミング学習ワイヤレスセキュリティ検査

DSTIKE Deauther MiNi V3 是一款小巧而强大的便携式设备，专为网络安全爱好者和专业人士设计。无论是测试无线网络安全性，还是进行网络研究和渗透测试，它都能提供出色的性能和灵活性。

主要特性：

高效的网络断开功能：利用强大的发射功率，DSTIKE Deauther MiNi V3 能够快速发起断开攻击，使得目标设备无法连接到Wi-Fi网络。

支持多种攻击模式：除了断开攻击（deauthentication），还支持Beacon帧攻击、Probe Request攻击等多种模式，帮助用户了解和加固网络安全。

简单易用的界面：设备配备了直观的Web界面，用户可以通过手机或电脑轻松控制和配置，无需复杂的设置。

便携轻便：迷你尺寸设计，方便携带和操作，适合在不同场景下使用，如会议室、公共场所或家庭网络环境。

开源社区支持：作为开源项目，DSTIKE Deauther MiNi V3 提供了丰富的社区支持和更新，用户可以根据需要进行定制和扩展。

应用场景：

网络安全测试和评估：用于评估Wi-Fi网络的安全性，检测潜在的漏洞和弱点。

教育和学习：用作网络安全学习的实验工具，帮助理解和学习Wi-Fi网络的工作原理和安全问题。

专业渗透测试：在合法授权的情况下，用于评估企业或组织的无线网络安全。

DSTIKE Deauther MiNi V3 是一款功能全面、性能卓越的网络安全工具，适合从业者和爱好者使用，帮助他们更好地了解和保护Wi-Fi网络。

What is it?

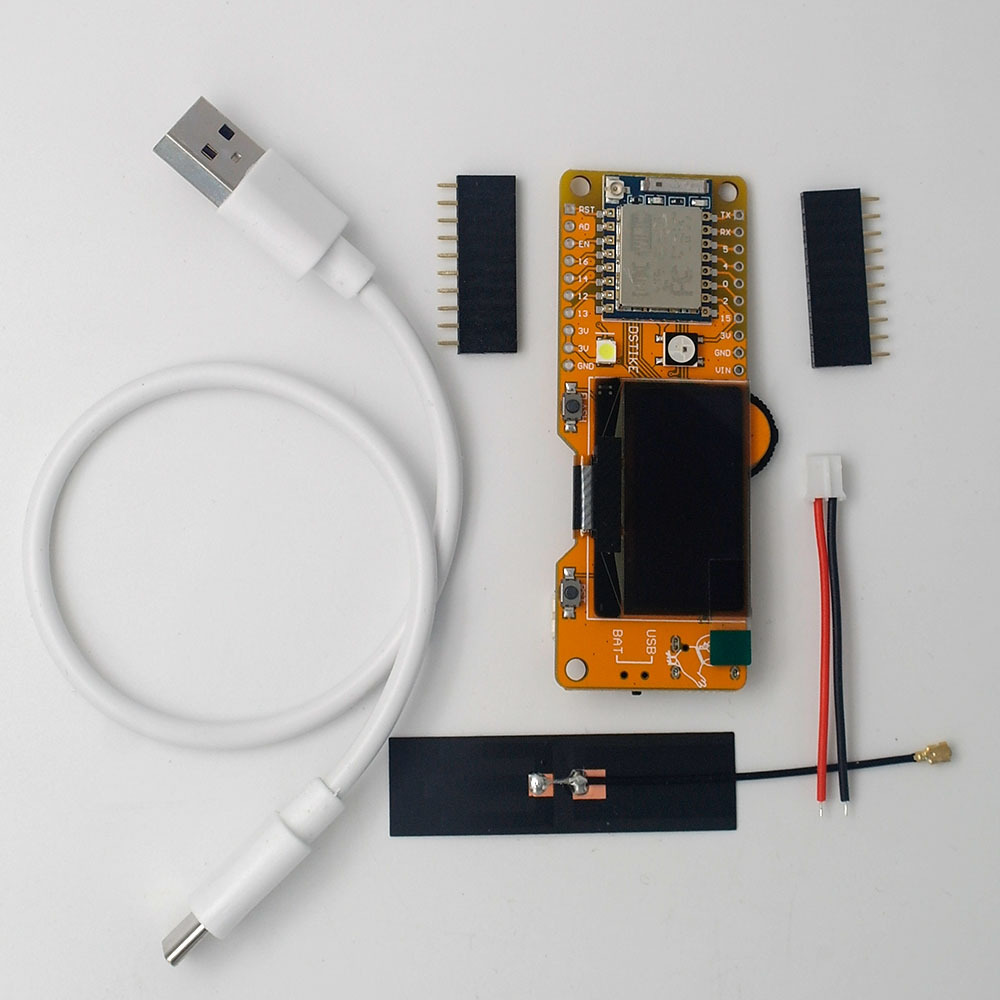

Deauther MiNi is still an ESP8266 development board,It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.Please note that the ESP8266 does only support 2.4GHz.You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.

Why did you make it?

I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther. It has been authorized by him and is officially supported.
Thanks to every customer that leaves feedback! I will keep improving this board.

Function

• Deauther Attack: Disconnect 2.4G WiFi
• Deauther Beacon: Create fake networks
• Deauther Probe：Confuse wifi trackers
• Packet Monitor：Display wifi traffic

GPIOs and hardware info:

• Display: SH1106 1.3" OLED
• Display SDA: GPIO 5
• Display SCL/SCK: GPIO 4
• WS2812b LED: GPIO 15
• Button Up: GPIO 12
• Button Down: GPIO 13
• Button Select: GPIO 14
• High Light LED: GPIO16
• All ESP8266 pins break out.

What makes it special?

• Only ~80mA power usage
• TP4056x power solution
• Included 5dB antenna
• All GPIO breakouts and 3.3 and 5V output
• 2 LEDs to indicate battery charging status (Red:Charging,Green:Full)

Why did you make it?

I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther. It has been authorized by him and is officially supported.

Thanks to every customer that leaves feedback! I will keep improving this board.

Disclaimer

This project is a proof of concept for testing and educational purposes. Neither the ESP8266, nor its SDK was meant or built for such purposes. Bugs can occur!

Use it only against your own networks and devices! Please check the legal regulations in your country before using it. We don't take any responsibility for what you do with this program.

More Info

Deauth

Closes the connection of WiFi devices by sending deauthentication frames to access points and client devices you selected. This is only possible because a lot of devices don't use the 802.11w-2009 standard that offers a protection against this attack. Please only select one target! When you select multiple targets that run on different channels and start the attack, it will quickly switch between those channels and you have no chance to reconnect to the access point that hosts this web interface.

Beacon

Beacon packets are used to advertise access points. By continuously sending beacon packets out, it will look like you created new WiFi networks. You can specify the network names under SSIDs.

Probe

Probe requests are sent by client devices to ask if a known network is nearby. Use this attack to confuse WiFi trackers by asking for networks that you specified in the SSID list. It's unlikely you will see any impact by this attack with your home network.

Videos

Software 2.6.0 Introduction

How to increase the maximum effect of antenna

How to connect smart phone

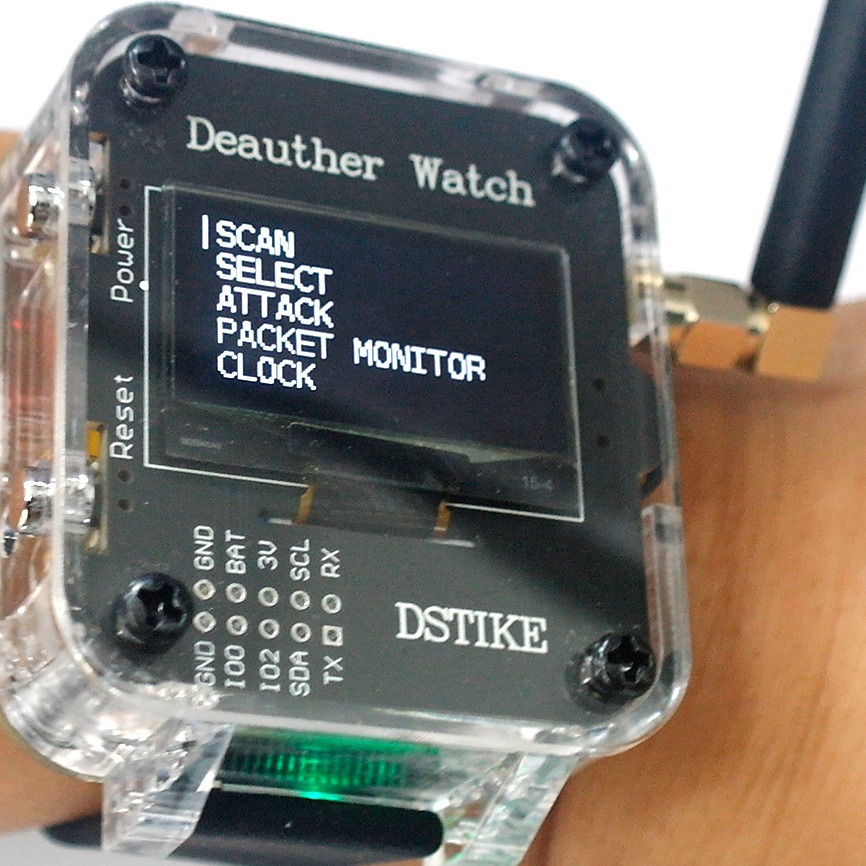

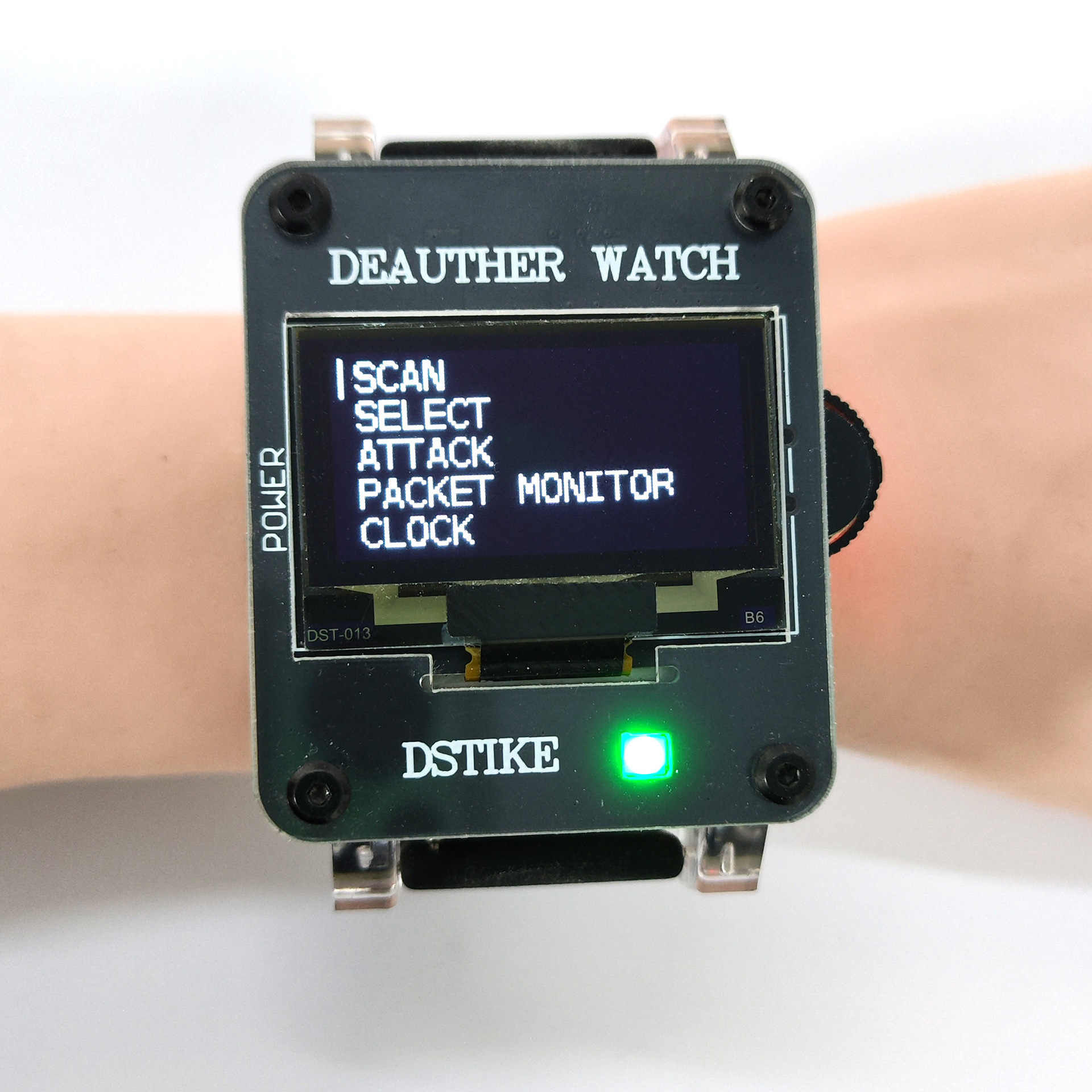

DSTIKE Deauther Watch Demo
